Bowey DF/DFF Series Pressure Hydraulic Filter Housing

Views : 213
Author : Boweyfilter
Update time : 2025-04-27 10:47:29

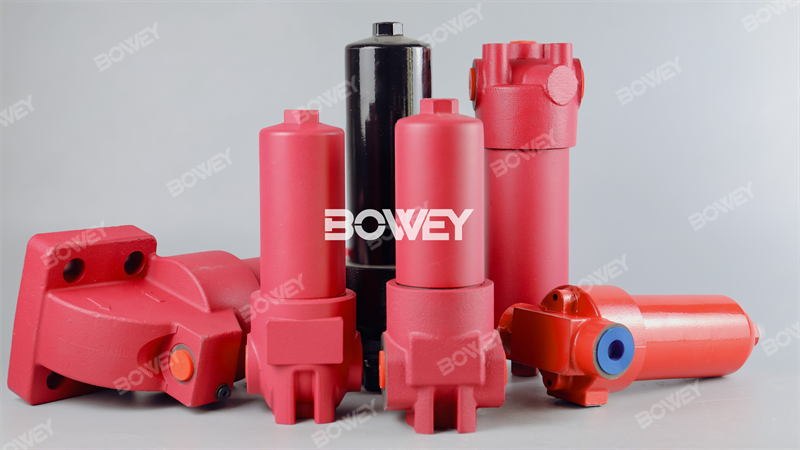

Bowey DF/DFF Series Pressure Hydraulic Filter Housing



Bowey DF/DFF series filters are in-line filters with flow rates up to 1800 l/min and pressure resistance up to 420 bar. The filter housing is designed in accordance with international standards and consists of a filter head and a screw-in filter bowl. DFF filters are suitable for bidirectional flow. DFF filters are also optimized for bidirectional flow.



Standard features
No bypass valve

Clogging indicator connection in the filter head

Drain screw with pressure relief (for DF/DFF/DFFX 330 and above)
DF/DFF/DFFX 990 and above with two-piece filter bowl as standard

DF/DFF 280-660, DFFX 330-660 and DF 2000 with one-piece or two-piece filter bowl

Specifications

Pressure rating up to 420 bar

Connections: G½ to SAE DN 80

Temperature range: -30℃ to + 100℃

Installation sizes: 30, 60, 110, 140, 160, 240, 280, 330, 500, 660, 990, 1320, 1500



Extended part numbers

DF ON 30 T B XX A 1.0

DF ON 60 T C XX A 1.0

 DF ON 110 T C XX A 1.0

DF ON 110 T C XX A 1.0 /-B6

DF ON 160 T E XX A 1.1 /-B6

DF 240 T E XX A 1.1 /-B6

 DF 330 T L XX A 1.0 /-QPD

DF 660 T F XX A 2.0

DF 990 SET XX W 2.0

DF 60 T C XX A 1.0 /-B6

 DF BN/HC 110  TC 10 C 1.X

DFF ON 160 T E 10 C 1.1
DF ON 160 T E XX A 1.1

DF ON 240 T E XX A 1.1 /-B6

DF ON 240 T E XX A 1.1

 DF ON 280 T E XX A 1.1 /-B6

DF ON 240 T E XX A 1.1

DF ON 280 T E XX A 1.1 /-B6

DF ON 330 T F XX A 1.0 /-B6

 DF ON 330 T F XX A 1.0 /-B6

DF ON  330 T L XX A 1.0 /-QPD

DF ON 500 T F XX A 1.0

DF ON 660 T F XX A 1.0 /-B6

DF ON 660 T F XX A 1.0
DF ON 660 T L XX A 1.0

DF ON 660 T L XX A 1.0

DF ON 660 SET XX W 2.0

DF ON 990 T F XX A 2.0 /-B6

DF ON 1320 T F XX A 2.0 /-B6

DF ON 1320 T L XX A 2.0

 DF ON 330 T F 10 B 1.1 /-B6

DFF ON 60 T C XX A 1.0

DFF ON 330 T F XX A 1.0 /-QPD

DFF ON 660 T F XX A 1.0 /-QPD

 DFF ON 660 T L XX A 1.0 /-QPD

DFF ON 160 T E 10 C 1.1


If you are interested in Boweyfilter products, please contact us here.
