Clean Oil. Anywhere. Anytime. - Portable Oil Filter Purifier
Why Bowey’s portable filtration technology is a game changer for maintenance teams
Let’s be honest. Most people don't think about oil filtration until something breaks.
And by then? You're looking at a costly repair, hours of downtime, and a very unhappy production manager.But what if you could clean your hydraulic oil before it causes problems? What if you could do it anywhere, in minutes, without hauling heavy equipment around?

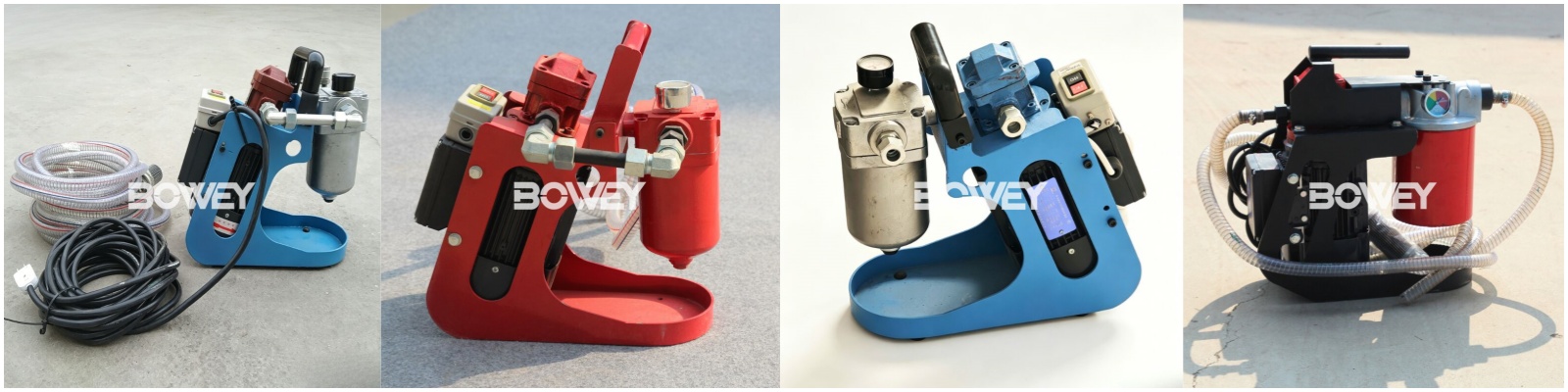

Enter Bowey's portable oil filter purifier series — specifically the ANBLYJAM-10 and BLYG Series.They are new products developed on the basis of mature filtration technology of our company, and has won user praise with its excellent quality and shape. Using ANBLYJAM-10 and BLYG Saries oil filter will make you get rid of the clunkiness and noise of traditional oil filter, and add a powerful assistant to your production.
FEATURE
1) Compact structure, light weight, small volume, smooth operation, low noise, easy to use and maintenance.
2) Wide use, can be used as an oil filter, can also be used as an oil pump conveying oil liquid.
3) The filter element adopts composite filter material, with small initial resistance, large circulation area, and is not blocked for a long time.
4) Users can also according to the needs, replaced with different precision filter elements, in order to meet the use of requirements.
OPERATIING INSTRUCTIONS
1. Setup – Place the unit on a flat, level surface. The pump suction height must not exceed 1.5 meters.
2. Connections – Do not reverse the inlet and outlet. Check all connections for tightness before use.
3. Prohibited use – Do not filter gasoline.
4. Pressure – Replace the fine filter element when the pressure gauge reaches 0.35 MPa.
5. Operation steps
Open both ball valves (located at the inlet and outlet) before connecting hoses.
Connect the inlet and outlet hoses to the external oil source.
Plug in the power.
Press start and check pump rotation. If wrong, stop immediately and swap two power phases.
Press "ON" to begin circulation and filtration.
When finished, press "OFF", then close both ball valves to prevent residual oil from draining.
6. Filter element maintenance
Cleaning (suction filter only) – Clean every 150 hours (approx. one week of continuous operation).
Replacement (fine filter) – Replace when pressure ≥ 0.35 MPa.
Replacement procedure – Open the drain valve to empty all oil. Loosen the bolts and remove the top cover. Replace the old element with a new one. Reinstall the cover and tighten the bolts securely.
DEBUGGING
|
FAULT |
REASON |
METHOD |
|
No oil output from the pump or insufficient oil discharge amount |
1) Motor reversal 2) Oil absorption height exceeds 1.5 m 3) Pipe blockage 4) Blow-by |
1) Adjust power source phase sequence 2) Reduce the Suction Height 3) Clean the pipeline 4) Repair the blow-by area |
|
Loud noise |
1) Pipe blockage 2) Oil filter or filter filter blocked 3) Blow-by 4) The suction height is too high 5) The system memory has the air |
1) Clean up the pipeline 2) Cleaning or replacement 3) Repair the blow-by area 4) Reduce the suction height 5) Lift the vent valve to exhaust |

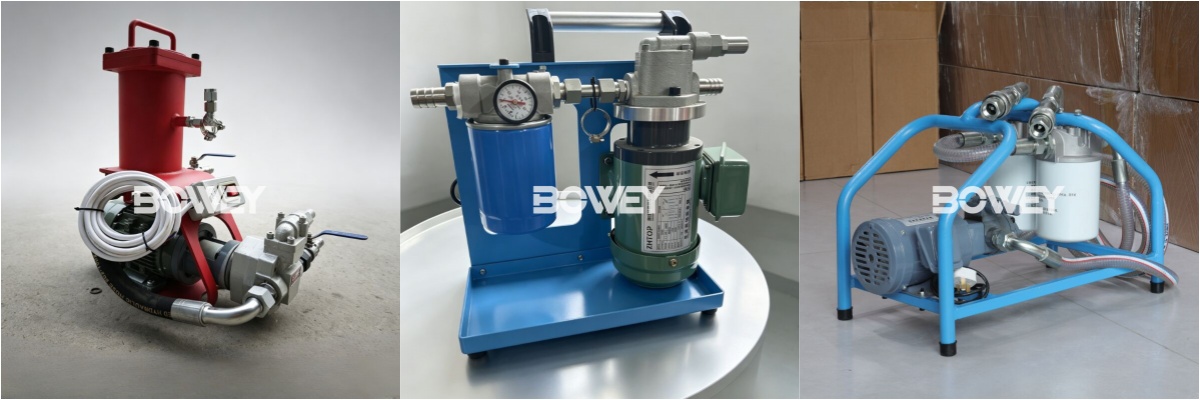

OTHER PORTABLE OIL FILTER PURIFIER
1. Replaces DESCASE Oil Filter Purifier
2. Replaces PARKER Oil Filter Purifier
Conclusion
You don't need to spend millions on filtration equipment to keep your engine oil clean.
Bowey's portable and handheld oil filters deliver industrial-grade filtration performance in a lightweight and portable way.Whichever you choose, you'll get a machine that protects your equipment, extends oil life, and saves you costs.
Don't wait until your equipment breaks down to start filtering. Take action now and start filtering!
If you are interested in Boweyfilter products, please contact us here.
