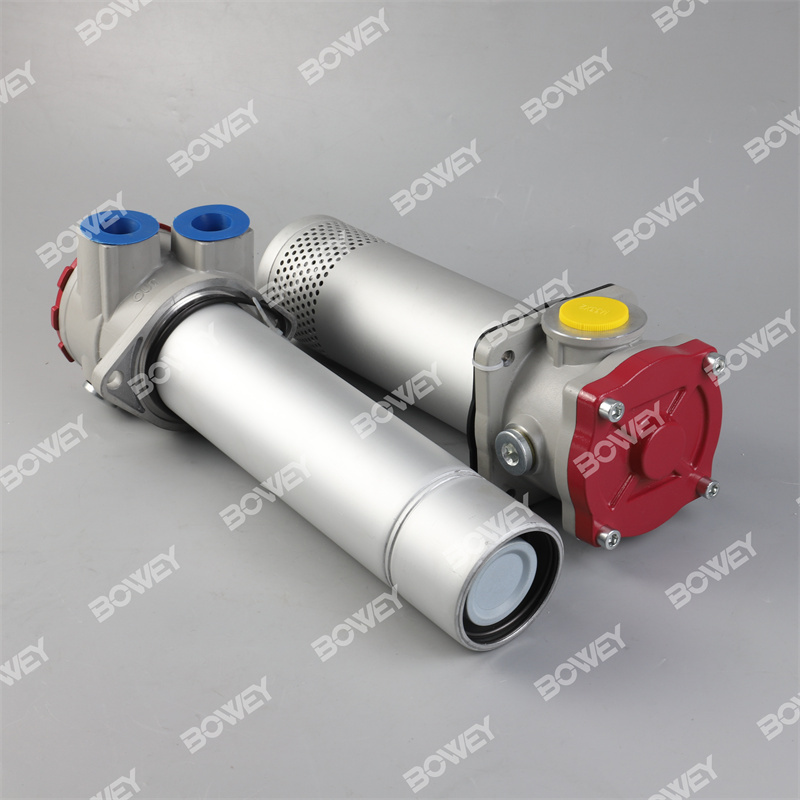

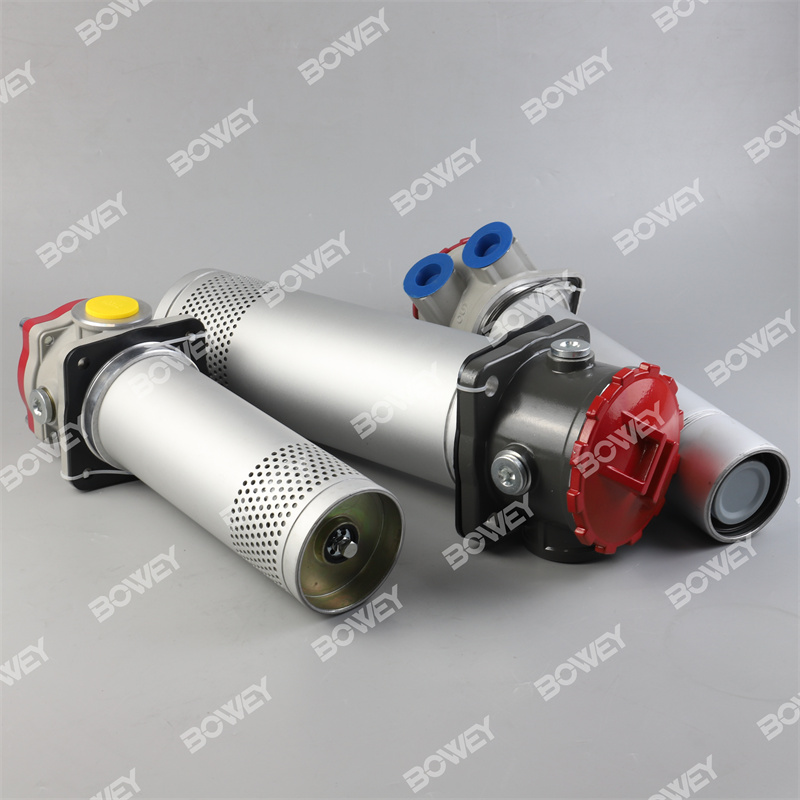

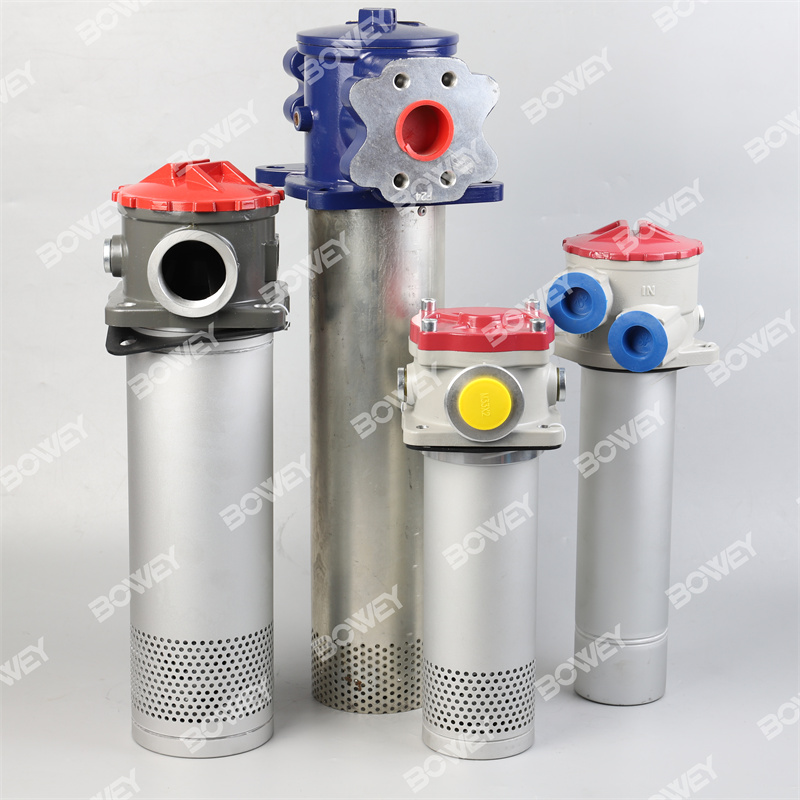

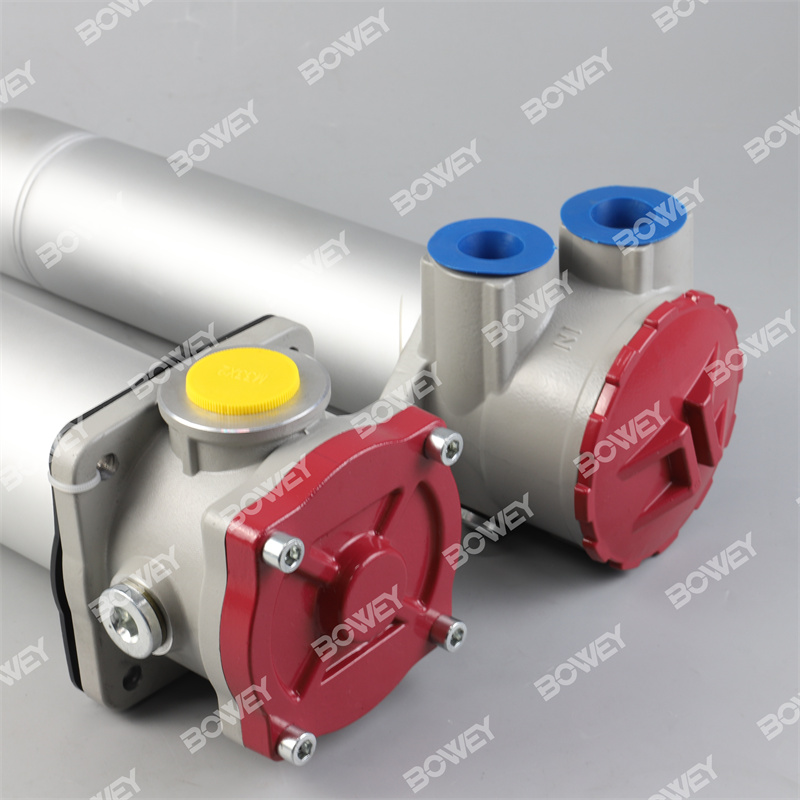

TFA-100X80L-C TFA-100X80L-Y Bowey Replaces Leemin TFA Series Oil Tank Suction Oil Filter Housing
Overview
Bowey TF series filters can be installed on the top, side or bottom of the oil tank. There is a check valve inside the filter. During maintenance, when the filter element is removed for cleaning, the check valve will automatically close to prevent oil from flowing out of the tank.This filter can be installed at the inlet of the pump to protect the pump and other components. This filter helps keep your hydraulic system clean and easy to use.
Features
Bowey suction filter is installed at the oil suction port of the oil pump to protect the oil pump and other hydraulic components to avoid inhaling contaminating impurities, effectively control hydraulic system pollution, and improve the cleanliness of the hydraulic system. The filter can be directly installed on the side, top or bottom of the oil tank, the oil suction cylinder is immersed below the liquid level in the oil tank, the filter head is exposed outside the oil tank, and is equipped with a self-sealing valve, a bypass valve, a filter element pollution blockage transmitter and other devices, so that the oil in the oil tank will not flow out when the filter element is replaced or cleaned. This product has the advantages of novel design, easy installation, large oil flow capacity, low resistance, and convenient cleaning or replacement of the filter element.
Benefits
1. Easy installation and connection, simplified system pipeline:
This filter can be directly installed on the side, bottom or top of the oil tank, the filter head is exposed outside the oil tank, the oil suction cylinder is immersed below the liquid level in the oil tank, the oil outlet is equipped with a pipe type and flange type connection, and the filter is equipped with a self-sealing valve and other devices, so that the pipeline does not need to install other pipe fittings such as a stop valve, thereby simplifying the pipeline and facilitating installation.
2. The self-sealing valve is set to make it very convenient to replace, clean the filter element or repair the system: When replacing, cleaning the filter element or repairing the system, you only need to unscrew the filter end cover (cleaning cover), and the self-sealing valve will automatically close, isolating the oil tank oil circuit, so that the oil in the oil tank will not flow out, making it very convenient to clean, replace the filter element or repair the system. If the self-sealing valve is opened, it can also be used to drain the oil from the oil tank.
3. It has a filter element pollution indicator and an oil bypass valve to improve the reliability of the hydraulic system: When the filter element is blocked by pollutants and the vacuum degree of the oil outlet is 0.018MPa, the indicator will send a signal, and the filter element should be replaced or cleaned in time. If the machine cannot be stopped immediately or no one comes to replace the filter element, the oil bypass valve on the upper part of the filter element will automatically open (the opening value is: vacuum 0.02MPa) to avoid the oil pump from sucking air. However, the machine should be stopped to replace or clean the filter element to keep the hydraulic system clean and improve the reliability of the hydraulic system.
Our honors
Package & Shipment
Package: Plastic bag inside,Paper box outside.Usually we pack filter element by paper boxes.and use export standard wooden boxes or pallets for heavy goods.
Shipment: Express For Small Package,and also could offer Express lines service for Southeast Asian countries, Central Asian countries,Middle East countries; Air Shipment could ship goods above 45 kgs with faster time; Sea Shipment could ship goods with big volume or heavy total weight,with longer time; China-Europe freight train could ship goods to the countries and regions along the route, the destination is in Europe.and could offer door to door service!
Extended Models
TFA-25X80L-C
TFA-25X80L-Y
TFA-25X100L-C
TFA-25X100L-Y
TFA-25X180L-C
TFA-25X180L-Y
TFA-40X80L-C
TFA-40X80L-Y
TFA-40X100L-C
TFA-40X100L-Y
TFA-40X180L-C
TFA-40X180L-Y
TFA-63X80L-C
TFA-63X80L-Y
TFA-63X100L-C
TFA-63X100L-Y
TFA-63X180L-C
TFA-63X180L-Y
TFA-100X80L-C
TFA-100X80L-Y
TFA-100X100L-C
TFA-100X100L-Y
TFA-100X180L-C
TFA-100X180L-Y
TFA-160X80L-C
TFA-160X80L-Y
TFA-160X100L-C
TFA-160X100L-Y
TFA-160X180L-C
TFA-160X180L-Y
TFA-250X80L-C
TFA-250X80L-Y
TFA-250X100L-C
TFA-250X100L-Y
TFA-250X180L-C
TFA-250X180L-Y
