LYC-J Series Bowey Coalescence Dehydration Oil Filter

Item No.: LYC-J Series
Sale: 0
Quantity
-
+
(0 In Stock)
Description FAQ Review
Description

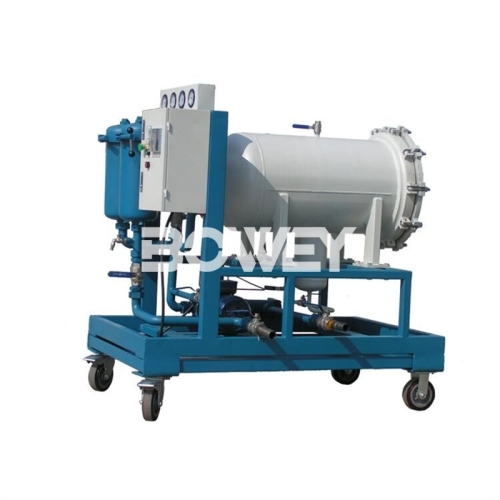

Bowey Coalescence Dehydration Oil Filter LYC-J Series



Applications

Purification of turbine oil and transformer oil

Removing water and impurities filtration of oil in hydraulic lubrication system

Access hydraulic lubrication systems and improve system cleanliness

Product Description

The water in the hydraulic lubrication system could cause oil oxidation, oil deterioration, reducing the film thickness, reduce lubricity, causing oil to form a modified polymeric molecules so that change the oil viscosity , to become organic acids, and then cauterize the metal surface, reduction or loss of dielectric strength of oil.For the traditional filtration and separation equipment,it’s very hard to separate one liquid from another mixed liquid,the coalescence separate oil filter manufactured by our company could set sophisticated filtering and dewatering efficiency as a whole,could remove impurities and oil particles in the emulsified water, free water, without damaging the quality of originally products.For oil contains large amounts of water, the separation effect is particularly significant, the separation speed is many times of the traditional.

Technical parameters

Model

LYC-25J-*/**

LYC-50J-*/**

LYC-100J-*/**

LYC-200J-*/**

Rated flow (L/min)

25

50

100

200

Rated pressure (Mpa)

0.6

Original pressure loss (Mpa)

≤0.1

Pump before filtering accuracy (μm)

100

Grade 1 filter rating (μm)

10、20、40

Grade 2 filter rating (μm)

3、5、10

Motor Power (Kw)

0.75

1.1

2.2

5.5

Voltage (V)

AC 380V Three - phase

Weight (Kg)

200

300

420

860

Measurement

1200 X600 X1200

1600 X880 X1400

1800 X1060 X1500

2500 X1200 X1800

Note:is grade 2 fine filter’s rating,such as 003 is 3 microns.

   ** is the suitable medium,Omission:General hydraulic oil;

     BH:Water - glycol      V:Phosphonate hydraulic fluid

   ***Adaptation medium viscosity≤100cSt

   ****Medium viscosity100cSt,need to add the heating device.

FAQ
Q
What 's the Bowey Filter Serive?
A
Awesome & timely pre-sale service
Stable & reliable product quality
No delay production period and delivery time
Efficient & Economic transport plan
Guaranteed after-sale quality assurance system
12 months quality warranty after shipment
OEM and Customized design and production

Q
What's your Quality Standard?
A
ISO 2941------Collapse & Burst Resistant
ISO 2942------Fabrication & Integrity Test
ISO 2943------Material Compatibility with Fluids
ISO 3724------Flow Fatigue Characteristics
ISO 3968------Pressure Drop vs. Flow Rate
ISO 16889------Multi-pass Performance Testing


Q
Invoice Certification & Certificate Of Origin requirements
A

We could assist you to prepare Invoice certification or CO:

General certificate of origin (CERTIFICATE OF ORIGIN) issued by the commodity inspection agency.

CCPIT CEERTIFICATE OF ORIGIN issued by the Chamber of Commerce;

Certificate of Origin issued by us manufacturer or exporter.

Q
What's the payment method?
A
Bowey Filter support payment online by Paypal,also support T/T,Western Union,Money Gram,L/C,D/A,D/P and etc.
Q
What's the Package type?
A

Filter Element Unit Package Type: Plastic Bags Inside,Paper Boxes Outside.
Outside Package: Usually Paper Boxes,Or Export Wooden Boxes For Special Cargo.
About Customization: Accept Requirements Customization.

More
Q
What's the production time?
A

7-10 days after getting the payment

If quantity of order is big,will need more time.

Q
What's the MOQ?
A

Usually MOQ is 1pc only.

Some special model or OEM model MOQ is 5pcs or 20pcs.

Q
How's the Shipment Arragements?
A

DHL,UPS,FedEx,TNT and so on express door to door;by sea or by air shipment.

Some countries have special line double clearing to door service,such as some middle Eastern countries, Russia, Ukraine, Uzbekistan, Australia ,and Some Southeast Asian countries have tax package double clearing to door service.

Q
What's the filter material Bowey Filter using?
A

National fiber glass from CSG Design Institute; USA HV fiber glass.

National oil paper; imported South oil paper

Supurb stainless steel mesh; Special mesh

Imported air paper ;Polyester fiber;Polypropylene and etc.

Q
What's the OEM including?
A

Part no. OEM.

Brands OEM.

Package & labels OEM.

Size & Structure OEM.

Q
What's your Bowey Filter Products performance?
A
 Bowey Filter insisting on using good quality material and Mature production process,100% ensure installation and using.could replace to originals 99.99%.
