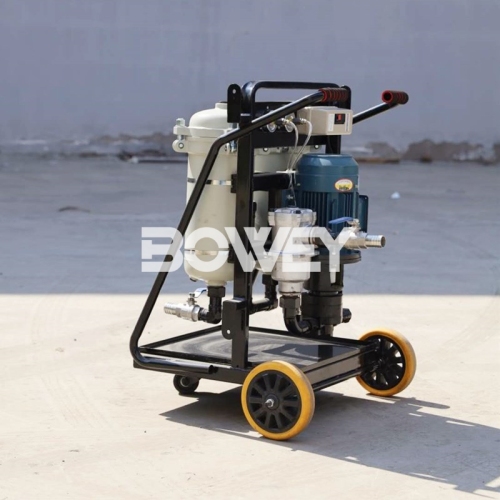

Bowey LYC-B series double cylinder high precision oil filter
Applications
●Filtering when the hydraulic lubrication system is refueling
● Bypass filtration when the hydraulic lubrication system is working
●Circuit filtration before the hydraulic lubrication system is put into operation
●The oil of the hydraulic lubrication system is pumped out without
the pump of the equipment itself.
Features
The oil filter includes a special gear pump driven by a motor, which has the characteristics of low noise, strong self-priming ability and stable operation.
The high pressure pipeline is provided with an overflow protection device to effectively protect the safety of the hydraulic system.
Thermal relay protection is used to prevent motor damage caused by motor overload.
The suction port coarse filter protects the pump and extends the life of the main filter.
A two-stage fine filter is placed behind the pump to achieve a high degree of cleanliness quickly.
The fine filter can select different precision according to different needs of users to meet the required requirements.
The oil filter housing has a quick-opening structure, which can quickly and quickly open the upper cover and replace the filter element without any tools.
A pressure gauge is mounted on the panel to continuously indicate the operating condition of the system and the degree of contamination of the filter element during operation.
Technical Parameters
Model |
LYC-32B-*/** |
LYC-50B-*/** |
LYC-63B-*/** |
LYC-100B-*/** |
Rated flow L/min |
32 |
50 |
63 |
100 |
Rated Pressure Mpa |
0.6 |
|||
Original pressure loss Mpa |
≤0.02 |
|||
Coarse filtration accuracy |
100 |
|||
Primary filtration accuracy |
10、20、40 |
|||
Secondary filtration accuracy |
3、5、10 |
|||
Motor Power kw |
0.75 |
1.1 |
1.1 |
2.2 |
Voltage V |
AC380V三相 |
|||
Weight kg |
90 |
100 |
108 |
150 |
Dimensions mm |
720×680×1020 |
720×680×1020 |
720×680×1020 |
740×740×1180 |
Note: * is the precision of the fine filter, such as 003 is 3 microns.
** is the medium to be applied, omitted: general hydraulic oil;
BH: water-glycol;
V: Phosphonate hydraulic fluid
***Adapted to medium viscosity ≤200cSt
