●Filtering when the hydraulic lubrication system is refueling
● Bypass filtration when the hydraulic lubrication system is working
●Circuit filtration before the hydraulic lubrication system is put into operation
●The oil of the hydraulic lubrication system is pumped out without the
pump of the equipment itself.
Features

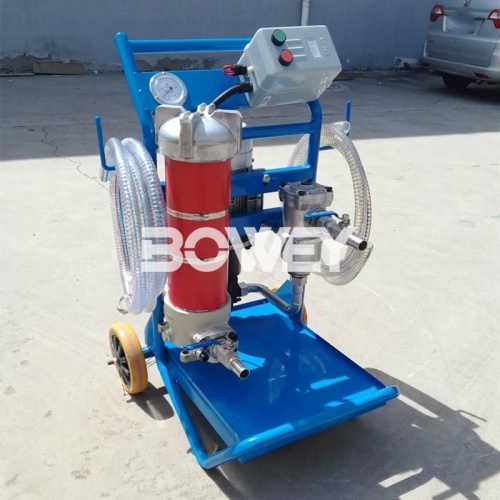

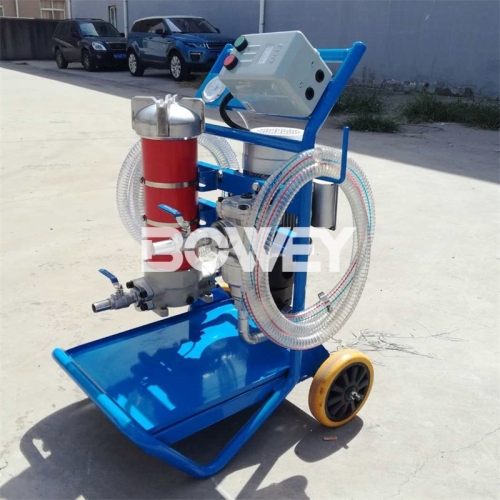

The oil filter includes a special gear pump driven by a motor,
which has the characteristics of low noise, strong self-priming ability and stable operation.
The high pressure pipeline is provided with an overflow protection device to effectively protect the safety of the hydraulic system.
Thermal relay protection is used to prevent motor damage caused by motor overload.
The suction port coarse filter protects the oil pump and extends the life of the main filter.
The fine filter can select different precision according to different needs of users to achieve the desired result.
The oil filter housing has a quick-opening structure that can be quickly and quickly opened without any tools, and the filter element can be replaced. A pressure gauge is mounted on the panel to continuously indicate the operating condition of the system and the degree of contamination of the filter element during operation.
MODEL
ZLYC-25
-*/**
ZLYC-32
-*/**
ZLYC-50
-*/**
ZLYC-100
-*/**
ZLYC-150
-*/**
ZLYC-200
-*/**
Rated Flow
(L/min)
25
32
50
100
150
200
Rated Pressure
(Mpa)
0.6
Working vacuum (Pa)
≤-0.095
After filtration water content (ppm)
5~30
After filtration air content
(Volume ratio）
≤0.2%
Coarse filter accuracy (μm)
100
Class 1 fine filtration accuracy (μm)
10, 20
Class 2 fine filtration accuracy (μm)
3, 5
Filter replacement pressure difference
0.2Mpa
Voltage (V)
AC 380V three-Phase, 50Hz
Total power (Kw)
18
26
36
65
65
135
Weight (Kg)
360
470
680
840
960
1500
Dimensions (cm)
125x92x160
135x98x160
150x106x180
160x108x210
180x120x220
200x120x220
Note: * is the two grade fine filter accuracy,such as 003 is 3 microns.
** is the suitable medium,Omission:No requirement.
S:need add Acid grease.
