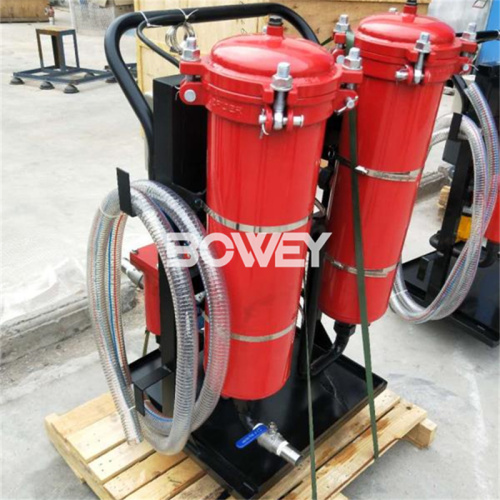

LYC-100B Bowey mobile hydraulic lubricating oil filter equipment

Item No.: LYC-100B
Hydraulic lubricating oil filter equipment
Sale: 0
  • Part Numbers:
    32 L/min
    50 L/min
    63 L/min
    100 L/min
Quantity
-
+
(800 In Stock)
Description FAQ Review
Description

LYC-100B Bowey mobile hydraulic lubricating oil filter equipment



Applications

●Filtering when the hydraulic lubrication system is refueling

● Bypass filtration when the hydraulic lubrication system is working

●Circuit filtration before the hydraulic lubrication system is put into operation

●The oil of the hydraulic lubrication system is pumped out without

the pump of the equipment itself.



Features

The oil filter includes a special gear pump driven by a motor, which has the characteristics of low noise, strong self-priming ability and stable operation.

The high pressure pipeline is provided with an overflow protection device to effectively protect the safety of the hydraulic system.

Thermal relay protection is used to prevent motor damage caused by motor overload.

The suction port coarse filter protects the pump and extends the life of the main filter.

A two-stage fine filter is placed behind the pump to achieve a high degree of cleanliness quickly.

The fine filter can select different precision according to different needs of users to meet the required requirements.

The oil filter housing has a quick-opening structure, which can quickly and quickly open the upper cover and replace the filter element without any tools.

A pressure gauge is mounted on the panel to continuously indicate the operating condition of the system and the degree of contamination of the filter element during operation.



Technical Parameters

Model

LYC-32B-*/**

LYC-50B-*/**

LYC-63B-*/**

LYC-100B-*/**

Rated flow L/min

32

50

63

100

Rated Pressure Mpa

0.6

Original pressure loss Mpa

≤0.02

Coarse filtration accuracy

100

Primary filtration accuracy

102040

Secondary filtration accuracy

3510

Motor Power kw

0.75

1.1

1.1

2.2

Voltage V

AC380V三相

Weight kg

90

100

108

150

Dimensions mm

720×680×1020

720×680×1020

720×680×1020

740×740×1180

Note: * is the precision of the fine filter, such as 003 is 3 microns.

          ** is the medium to be applied, omitted: general hydraulic oil;

          BH: water-glycol;

          V: Phosphonate hydraulic fluid

          ***Adapted to medium viscosity ≤200cSt





FAQ
Q
What 's the Bowey Filter Serive?
A
Awesome & timely pre-sale service
Stable & reliable product quality
No delay production period and delivery time
Efficient & Economic transport plan
Guaranteed after-sale quality assurance system
12 months quality warranty after shipment
OEM and Customized design and production

Q
What's your Quality Standard?
A
ISO 2941------Collapse & Burst Resistant
ISO 2942------Fabrication & Integrity Test
ISO 2943------Material Compatibility with Fluids
ISO 3724------Flow Fatigue Characteristics
ISO 3968------Pressure Drop vs. Flow Rate
ISO 16889------Multi-pass Performance Testing


Q
Invoice Certification & Certificate Of Origin requirements
A

We could assist you to prepare Invoice certification or CO:

General certificate of origin (CERTIFICATE OF ORIGIN) issued by the commodity inspection agency.

CCPIT CEERTIFICATE OF ORIGIN issued by the Chamber of Commerce;

Certificate of Origin issued by us manufacturer or exporter.

Q
What's the payment method?
A
Bowey Filter support payment online by Paypal,also support T/T,Western Union,Money Gram,L/C,D/A,D/P and etc.
Q
What's the Package type?
A

Filter Element Unit Package Type: Plastic Bags Inside,Paper Boxes Outside.
Outside Package: Usually Paper Boxes,Or Export Wooden Boxes For Special Cargo.
About Customization: Accept Requirements Customization.

More
Q
What's the production time?
A

7-10 days after getting the payment

If quantity of order is big,will need more time.

Q
What's the MOQ?
A

Usually MOQ is 1pc only.

Some special model or OEM model MOQ is 5pcs or 20pcs.

Q
How's the Shipment Arragements?
A

DHL,UPS,FedEx,TNT and so on express door to door;by sea or by air shipment.

Some countries have special line double clearing to door service,such as some middle Eastern countries, Russia, Ukraine, Uzbekistan, Australia ,and Some Southeast Asian countries have tax package double clearing to door service.

Q
What's the filter material Bowey Filter using?
A

National fiber glass from CSG Design Institute; USA HV fiber glass.

National oil paper; imported South oil paper

Supurb stainless steel mesh; Special mesh

Imported air paper ;Polyester fiber;Polypropylene and etc.

Q
What's the OEM including?
A

Part no. OEM.

Brands OEM.

Package & labels OEM.

Size & Structure OEM.

Q
What's your Bowey Filter Products performance?
A
 Bowey Filter insisting on using good quality material and Mature production process,100% ensure installation and using.could replace to originals 99.99%.
Less
