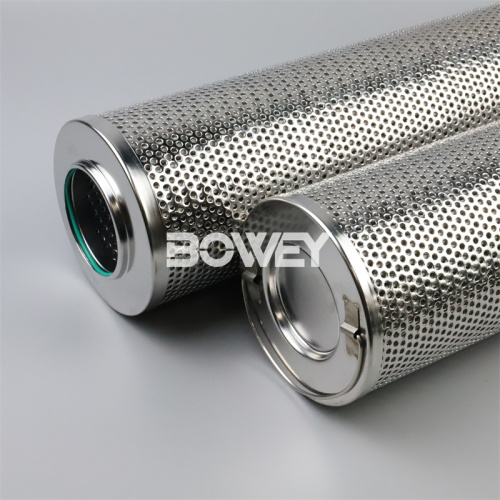

HQ25.300 Bowey replaces Haqi gas generator filter element
The coalescence filter element is processed by a variety of composite materials through a special process. It has hydrophilic characteristics. It can not only filter out the mechanical impurities in the medium, but also remove the emulsified water from the medium through demulsification and coalescence. The filter element is separated and coalesced into larger water droplets to facilitate further purification of the medium.
The coalescence filter element mainly selects glass fiber or polyester fiber with surface treatment as the coalescence medium. The structure of the filter material is specially designed to make the filter medium have good coalescence performance. The filtering accuracy can reach 0.1 μ m.
The droplets of oil, water and other liquids are captured by fibers inside the coalescer. These micron sized fibers form a tortuous channel for the air flow, forcing the solid particles and liquid droplets to be captured by fibers under the action of three filtering mechanisms of inertial collision, diffusion interception and direct interception. The liquid surface tension makes the small droplets coalesce into larger droplets, and the large droplets settle to the bottom of the container due to gravity.
High density gradient glass fiber, highly efficient coalescence of liquid mist and droplets in the air stream, high filtration accuracy
Stable structure, no medium fiber shedding, no pollution to the environment and downstream products
Good compatibility with various fluids
Good environmental protection, 100% synthetic material, complete combustion without residue
Package & Shipment
Package: Plastic bag inside,Paper box outside.Usually we pack filter element by paper boxes.and use export standard wooden boxes or pallets for heavy goods.
Shipment: Express For Small Package,and also could offer Express lines service for Southeast Asian countries, Central Asian countries,Middle East countries; Air Shipment could ship goods above 45 kgs with faster time; Sea Shipment could ship goods with big volume or heavy total weight,with longer time; China-Europe freight train could ship goods to the countries and regions along the route, the destination is in Europe.and could offer door to door service!
Stainless Steel Metal Filter Element
Industrial factory Filter Element
We could assist you to prepare Invoice certification or CO:
General certificate of origin (CERTIFICATE OF ORIGIN) issued by the commodity inspection agency.
CCPIT CEERTIFICATE OF ORIGIN issued by the Chamber of Commerce;
Certificate of Origin issued by us manufacturer or exporter.
Filter Element Unit Package Type: Plastic Bags Inside,Paper Boxes Outside.
Outside Package: Usually Paper Boxes,Or Export Wooden Boxes For Special Cargo.
About Customization: Accept Requirements Customization.
7-10 days after getting the payment
If quantity of order is big,will need more time.
Usually MOQ is 1pc only.
Some special model or OEM model MOQ is 5pcs or 20pcs.
DHL,UPS,FedEx,TNT and so on express door to door;by sea or by air shipment.
Some countries have special line double clearing to door service,such as some middle Eastern countries, Russia, Ukraine, Uzbekistan, Australia ,and Some Southeast Asian countries have tax package double clearing to door service.
National fiber glass from CSG Design Institute; USA HV fiber glass.
National oil paper; imported South oil paper
Supurb stainless steel mesh; Special mesh
Imported air paper ;Polyester fiber;Polypropylene and etc.
Part no. OEM.
Package & labels OEM.
Size & Structure OEM.
