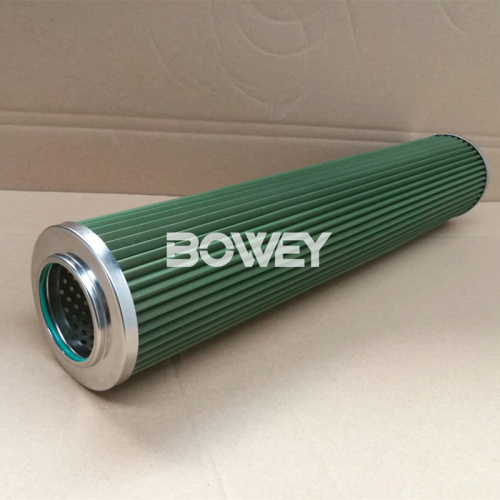

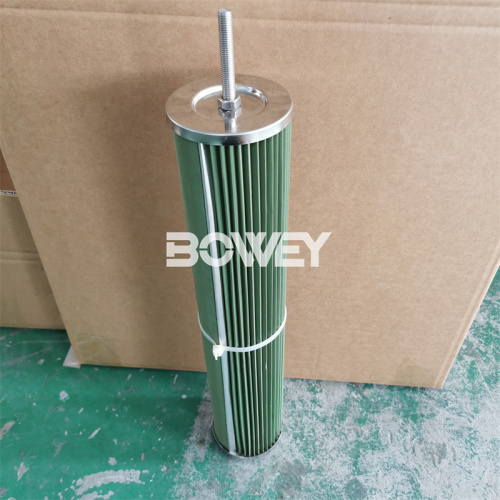

1203126 Bowey replaces Pall separation filter element of coalescence oil purifier HCP150A38050KC

1203126 Bowey replaces Pall separation filter element of coalescence oil purifier HCP150A38050KC

Overview

The coalescence filter element is processed by a variety of composite materials through a special process. It has hydrophilic characteristics. It can not only filter out the mechanical impurities in the medium, but also remove the emulsified water from the medium through demulsification and coalescence. The filter element is separated and coalesced into larger water droplets to facilitate further purification of the medium. The coalescence filter element mainly selects glass fiber or polyester fiber with surface treatment as the coalescence medium. The structure of the filter material is specially designed to make the filter medium have good coalescence performance. The filtering accuracy can reach 0.1 μm.

Working principle

The droplets of oil, water and other liquids are captured by fibers inside the coalescer. These micron sized fibers form a tortuous channel for the air flow, forcing the solid particles and liquid droplets to be captured by fibers under the action of three filtering mechanisms of inertial collision, diffusion interception and direct interception. The liquid surface tension makes the small droplets coalesce into larger droplets, and the large droplets settle to the bottom of the container due to gravity.

Benefits

• Glass fiber coalescence filter element High density gradient glass fiber, highly efficient coalescence of liquid mist and droplets in the air stream, high filtration accuracy

• Stable structure, no medium fiber shedding, no pollution to the environment and downstream products

• Good compatibility with various fluids

• Good environmental protection, 100% synthetic material, complete combustion without residue

Our honors

Package & Shipment

Extended Models

CS604LGDH13

CS604LGBDH13

PS604HFGH13

PFS1001ZMH

PFS4463ZMH13

LCS4PXSH

LCS4ELBH

LCS4H1AH

LCS4HAH

LCS4PXSH

LCS4B1AH

LSS2F2H

LCS2B1AH

LSS2F1H

LCS2B1AH/LSS2F2H

LSS2F1H

Z1202845
