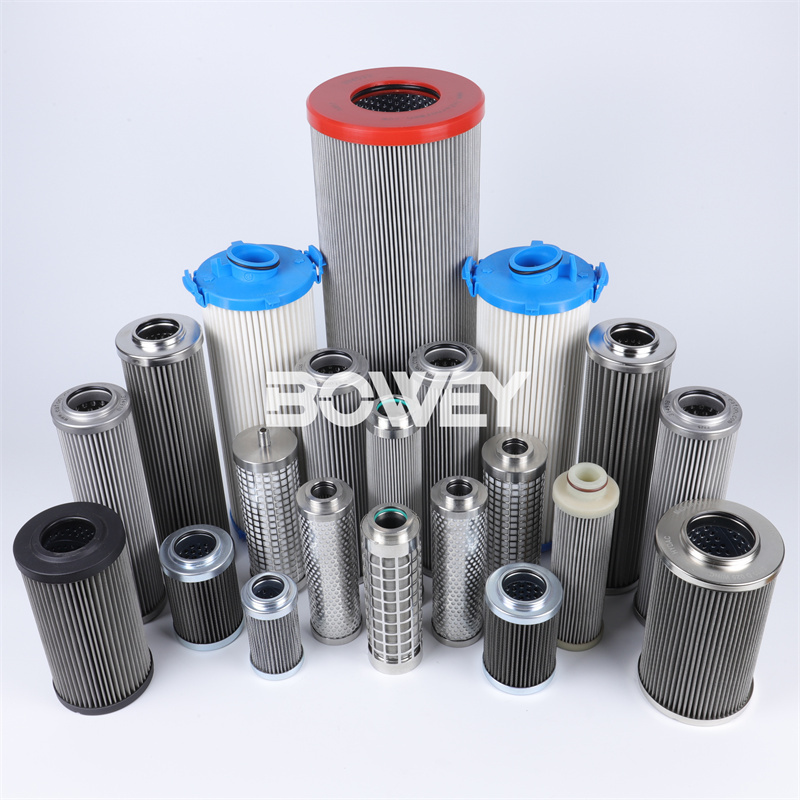

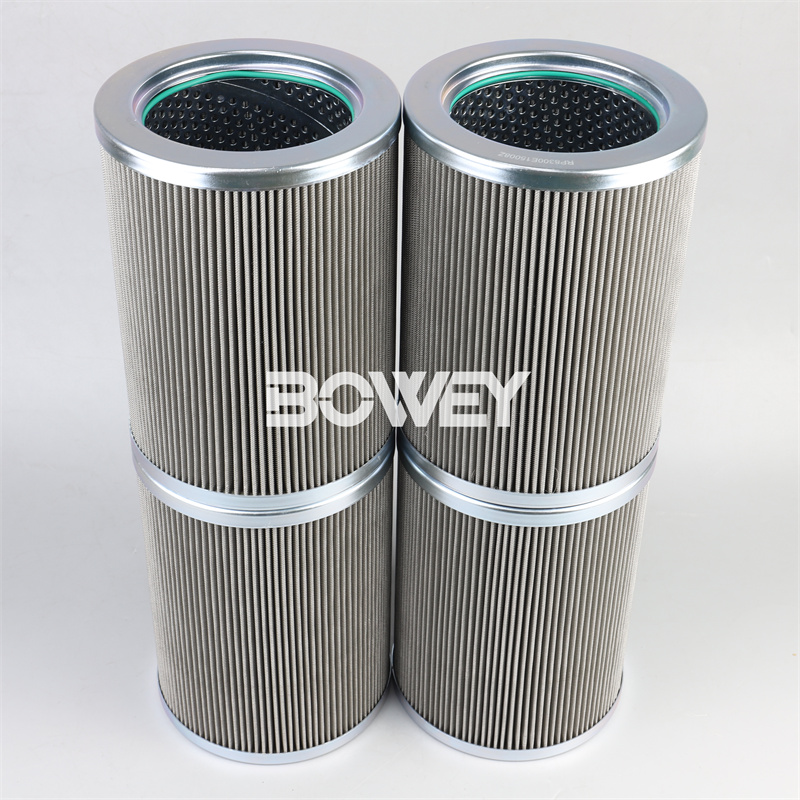

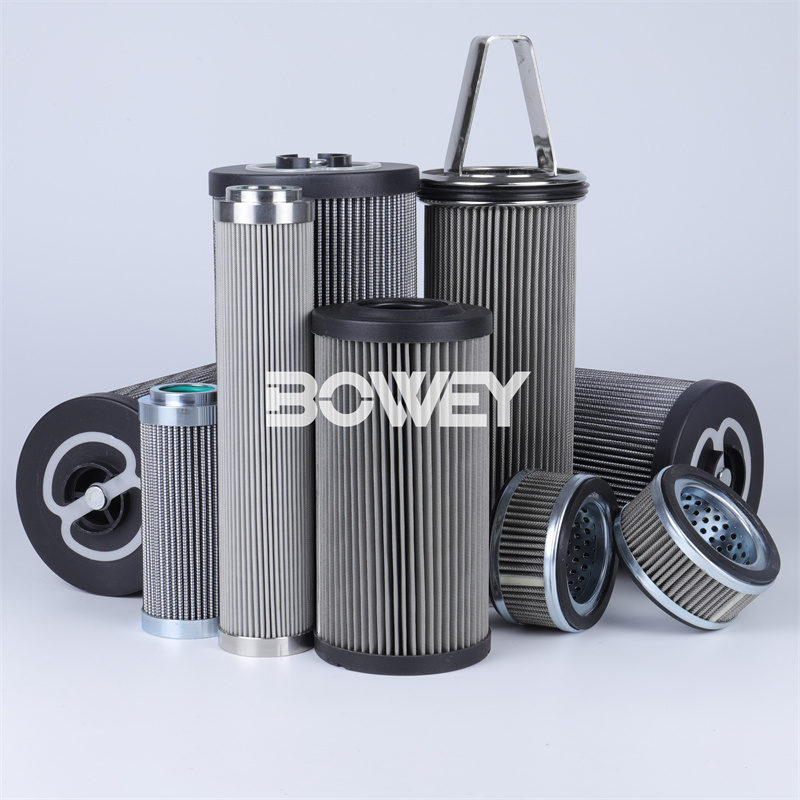

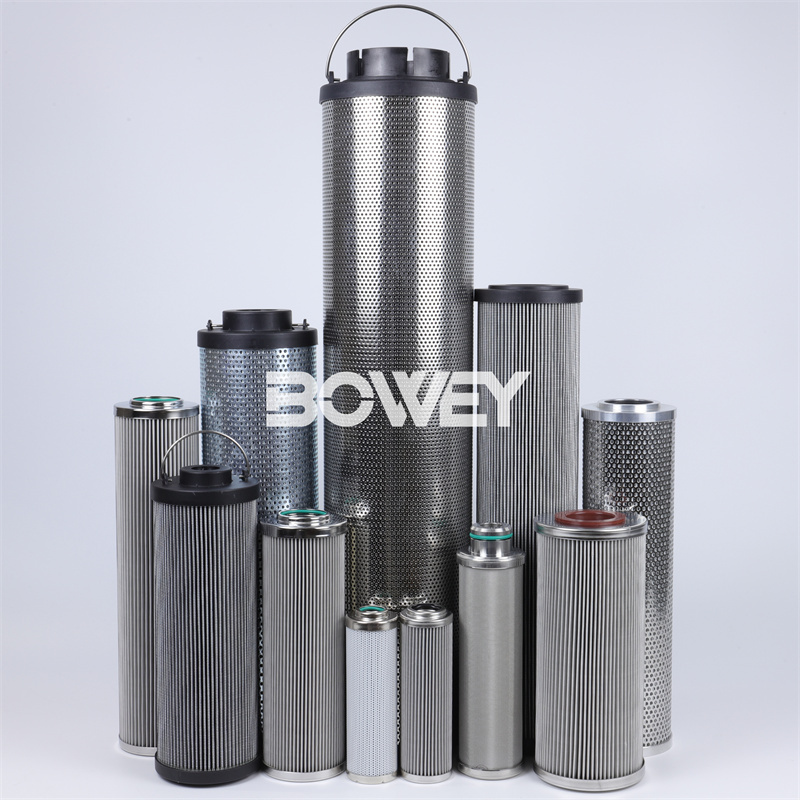

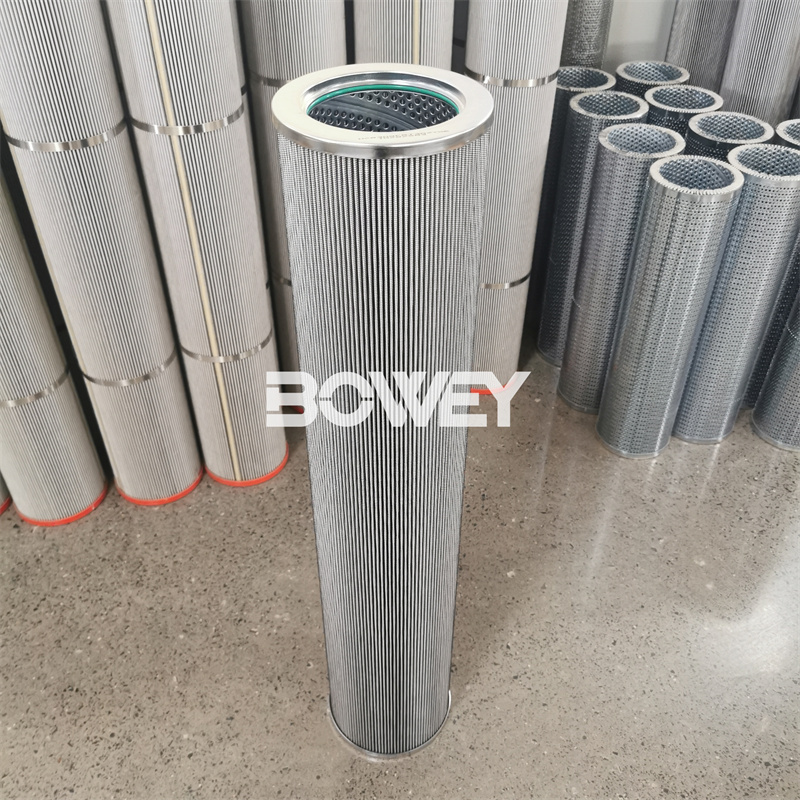

HC0657FDT36H Bowey Replaces Pall Hydraulic Oil Filter Element
Bowey hydraulic filter elements are core components of industrial hydraulic systems, directly affecting the stability, efficiency and service life of equipment. This guide covers all key information about hydraulic filter elements, including material selection, performance advantages and application scenarios, designed to help you choose the right product and improve the operational efficiency of your hydraulic system.
1. The Core Functions & Importance of Hydraulic Filter Elements
Bowey hydraulic filter elements are critical components designed to purify hydraulic oil. They effectively remove contaminants from the oil—including metal particles, dust, and colloids—thereby protecting key hydraulic components such as pumps, valves, and cylinders from abrasion and blockage.
The quality of filter elements directly influences:
▶ The service life of hydraulic components;
▶ The operational stability of the hydraulic system;
▶ The overall maintenance costs of equipment.
2. Choose the Right Filter Material for Your Needs
The filter material is key to determining filtration performance and service life. We have summarized four common materials with clear features and suitable scenarios to help you make quick and accurate decisions.
▶ Glass Fiber Hydraulic Filter Element (High Precision & High Performance)
Features: High filtration precision, low flow resistance, good high-temperature resistance and strong anti-aging performance. The folded structure greatly expands the effective filtration area, delivering significantly higher dirt holding capacity than conventional filters.
Applicable Scenarios: High-precision hydraulic systems, such as machine tools, wind power equipment, precision injection molding machines and high-end industrial production lines.
▶ Cellulose Hydraulic Filter Element (Cost-Effective & Universal)
Features: Moderate cost, stable filtration efficiency and good compatibility with neutral hydraulic oil. It is a cost-effective option for low-pressure and medium-flow hydraulic systems, with simple replacement and low maintenance costs.
Applicable Scenarios: General industrial equipment, low-pressure hydraulic systems and cost-sensitive applications.
▶ Metal Mesh Hydraulic Filter Element (Durable & Reusable)
Features: High strength, wear resistance, corrosion resistance and can be cleaned and reused. It performs well in harsh environments, withstands high pressure and high temperature without deformation or damage.
Applicable Scenarios: Steel plants, coal mines, marine equipment and other heavy-duty working conditions, as well as hydraulic systems requiring reusable filter elements.
▶ Composite Filter Material Hydraulic Filter Element (Comprehensive Performance)
Features: Combines the advantages of glass fiber, cellulose and metal mesh, balancing filtration precision, flow rate and service life. The low-pressure drop design ensures stable system operation with strong dirt holding capacity.
Applicable Scenarios: Complex hydraulic systems, including large hydraulic stations, marine equipment and various heavy industrial machinery.
3. Key Factors for Selecting the Right Filter Element
When choosing a hydraulic filter element, the following four core indicators must be considered to avoid mismatching and ensure reliable system performance.
▶ Filtration Precision: Determines the size of particles removed. Higher precision delivers cleaner oil and better protection for precision components.
Working Pressure: Must match the operating pressure of your hydraulic system.
▶ Flow Rate: Selected according to system flow to avoid excessive pressure loss.
Service Life: Affected by filter material and dirt holding capacity. Longer service life reduces maintenance frequency and overall cost.
4. Application Scenarios & Industry-Specific Solutions
Hydraulic filter elements are widely used across various industries. We provide targeted solutions to meet the specific demands of different working conditions.
Industrial Manufacturing
We recommend high-precision, low-pressure-drop glass fiber or composite filter elements to ensure production line stability and reduce equipment failure rates.
Energy & Power
Our high-temperature, high-pressure-resistant filter elements with excellent dirt holding capacity support long-term, continuous operation of power generation equipment.
Heavy Industry & Mining
Corrosion-resistant and wear-resistant metal mesh or composite filter elements adapt well to harsh environments with high dust and high temperature.
Marine & Port Machinery
Our corrosion-resistant and moisture-proof filter elements perform reliably in marine environments, ensuring stable operation of port machinery.
5. Why Choose Boweyfilter’s Hydraulic Filter Elements?
▶ Premium filter materials: We strictly select high-quality glass fiber, stainless steel and other materials to guarantee filtration efficiency and long service life.
▶ International standards: Products comply with ISO and other global standards, compatible with most hydraulic systems.
▶ Customization available: We offer tailored solutions based on your model, working conditions and brand replacement requirements.
▶ Cost-effective: Factory direct supply eliminates middlemen, reducing procurement costs while maintaining superior quality.
If you have any questions about hydraulic filter elements or require customized products, please feel free to contact us. We provide professional technical support and reliable after-sales service.
