Name: CS-AL-1 CS-AL-2 CS-AL-3 CS-AL-4 Bowey High-Precision Oil Filter Purifier for Hydraulic Lubrication S
Brand: BoweyFilter
SKU: CS-AL-1 CS-AL-2 CS-AL-3 CS-AL-4
Availability: InStock
Rating: 5 (1 reviews)

CS-AL-1 CS-AL-2 CS-AL-3 CS-AL-4 Bowey High-Precision Oil Filter Purifier for Hydraulic Lubrication System

Description FAQ Review

Description

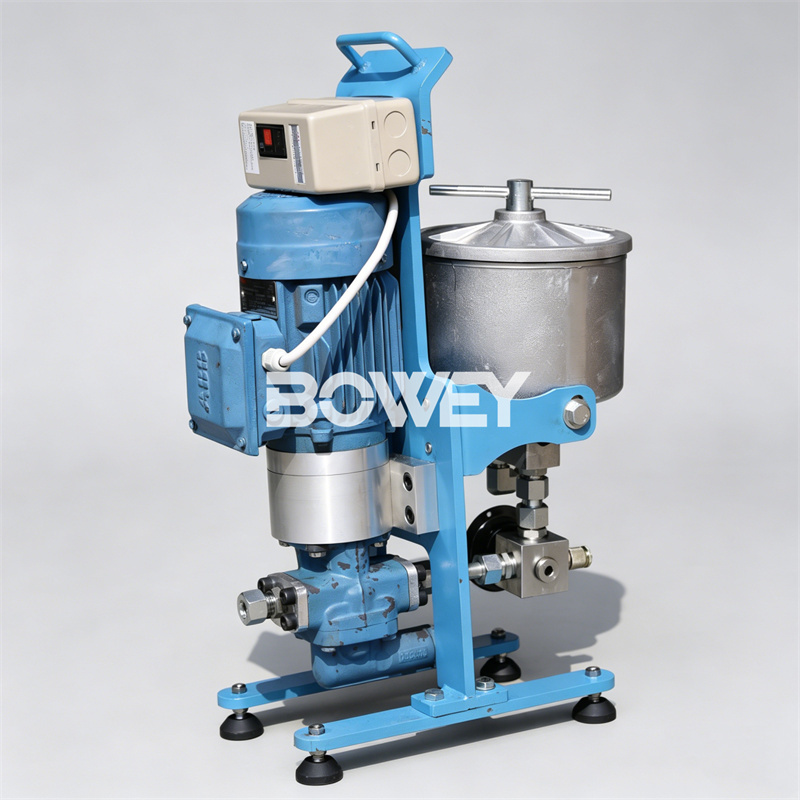

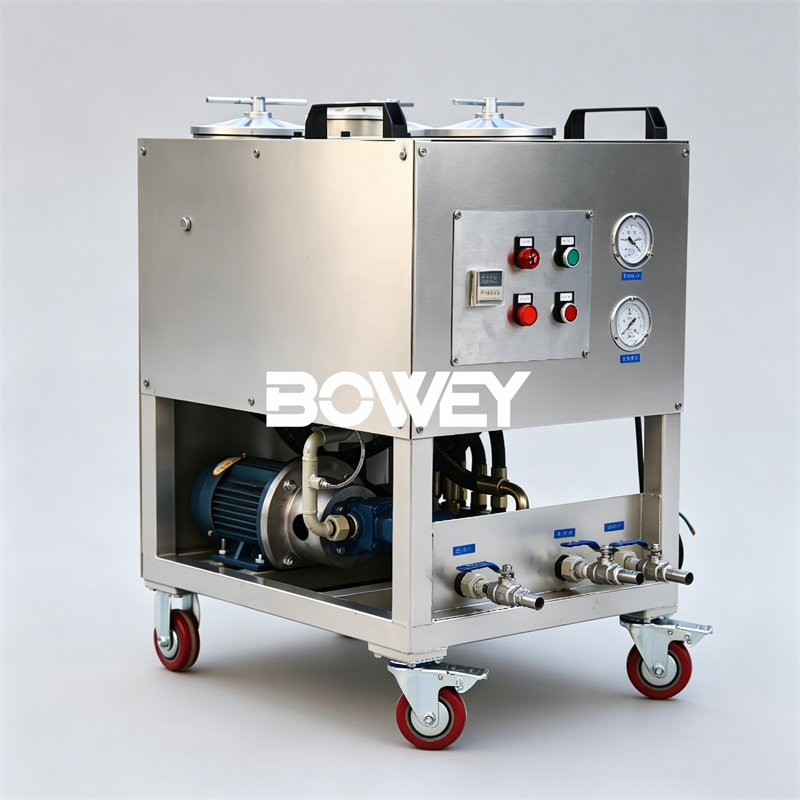

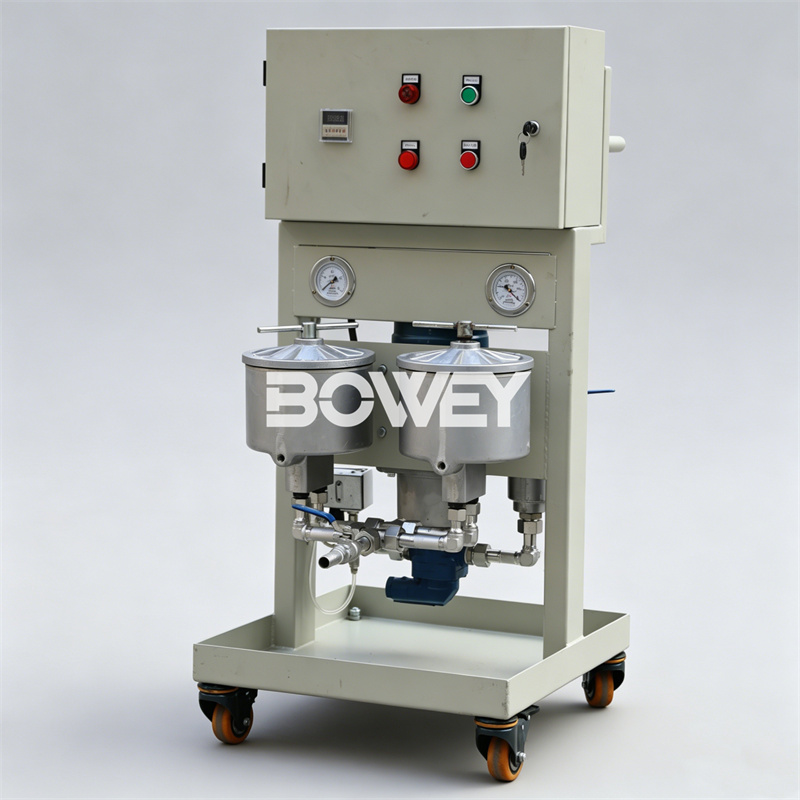

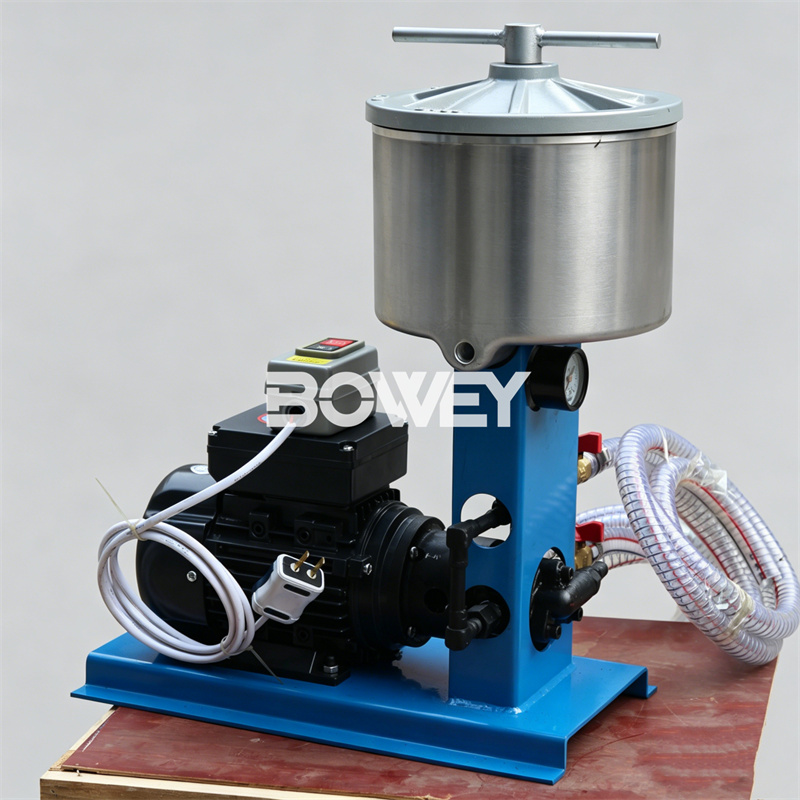

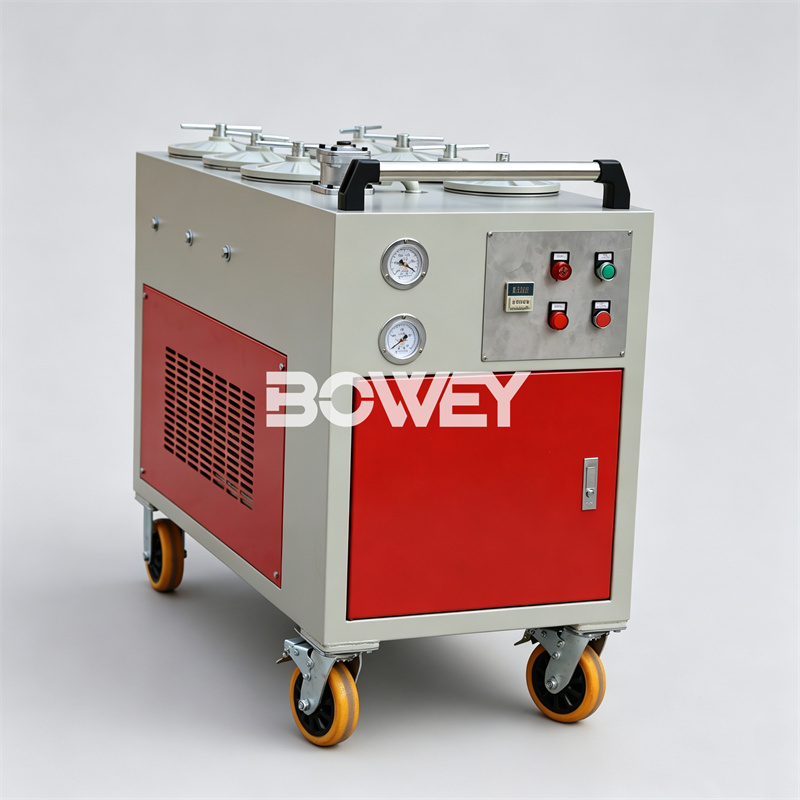

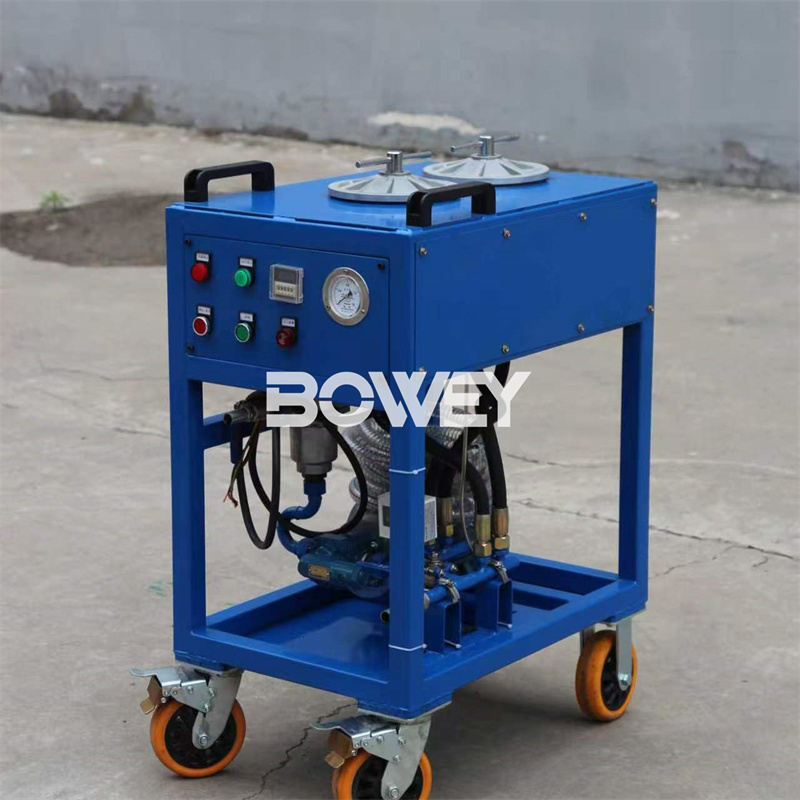

CS-AL Series Bowey High-Precision Oil Filter Purifier for Hydraulic Lubrication System

Bowey’s CS-AL series oil purifiers feature a refined enclosure covering all components, protecting the equipment from external contamination, making them especially suitable for environments with high cleanliness requirements.

Clean Hydraulic Oil & Protect Your Equipment

A wide range of models are available, spanning from Type 1R to Type 9R. These units are fitted with leakage and overload protection shutdown devices to safeguard the motor, overpressure protection devices for the hydraulic system, as well as oil pumping/filtration switching mechanisms for convenient dual-mode operation between oil pumping and filtration.

In addition, they are equipped with filter element clogging alarm and automatic shutdown functions. The system comprises an independent oil pump, vacuum gauge, pressure gauge, and multiple parallel filter cartridges. A suction-side strainer protects the oil pump and extends the service life of the main filter.

These purifiers continuously remove contaminant particles and moisture from oil, delivering stable purification performance with a filtration accuracy of NAS1638 Class 3.

Applications

On-site filtration for oil filling of hydraulic and lubrication systems
Online bypass filtration during system operation
Circular pre-filtration prior to system commissioning
Permanent connection to hydraulic and lubrication systems to effectively enhance overall system cleanliness.

We support personalized custom design, non-standard sizing and bespoke manufacturing, delivering exclusive solutions for different application needs.

Replace Filter Element
BOWEY replacement filter cartridges efficiently eliminate a wide range of contaminants, including solid particles, moisture, sludge, varnish and oxidation deposits. They deliver superior oil filtration performance, protect equipment assets and boost overall production efficiency.

FAQ

Q: How often should I replace the filter element?

A: Service life depends on oil condition and contamination levels. For optimal performance, we recommend monitoring differential pressure and replacing the element when it reaches the specified limit.

Q: Is the unit suitable for continuous operation?

A: It is designed for intermittent service use (filling, flushing, offline filtration). Continuous duty cycles should be reviewed with our technical team.

More Oil Purifier Series for Your Selection

We also professional in manufacturing vacuum dehydration oil purifiers, coalescence separation oil purifiers, regeneration decolorization oil purifiers, high viscosity oil filtration purifiers and customized mobile filter carts. Whether you need simple particle filtration, water removal, gas separation, acid value reduction, oil decolorization or full oil regeneration treatment, our multi-series oil purifiers can perfectly match your project.

All supporting filter elements, protective accessories and after-sales technical services are provided in one stop, to help you effectively control oil contamination, extend service life of hydraulic/lubrication equipment, and reduce operation & maintenance costs.

Ready to improve your oil cleanliness?

Contact us today to discuss your requirements or request a quote.
