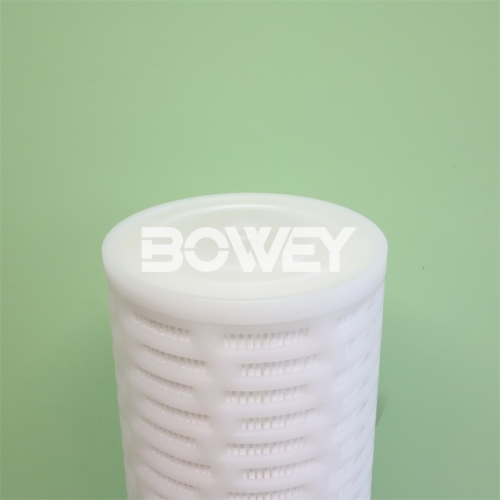

CRHFPP0402000NC Bowey large flow water treatment folding filter element

CRHFPP0402000NC Bowey large flow water treatment folding filter element

Overview

1. Large diameter of 6 inches/152mm, one end open, the filtering fluid flows from inside to outside, it can cause pollution by falling impurities after filtering.

2. The deep folding structure and multi-layer filter membrane combination have higher filtration efficiency than traditional melt blown and wire wound filter elements. At the same time, the large diameter design of the filter element increases the effective filter area and can greatly extend the life of the filter element and reduce the number of filter elements. And reduce the size of the filter housing, saving costs.

3. Suitable for filtration of various large-flow fluids: RO security filtration, seawater desalination filtration, cooling water filtration, chemical raw materials, beverages, biopharmaceuticals, solvents, water filtration.

4. The filter element is produced, cleaned, tested and packaged in a clean room with a cleanliness of 10000.

Features

Structural material: melt-blown fine PP polypropylene fiber filter membrane

Support film: PP polypropylene

Frame: PP polypropylene

Gasket/seal ring: EPDM EPDM, Viton fluorine rubber, Silicone silicone rubber, Buna-N nitrile rubber, Teflon PTFE coated fluorine rubber

Dimensions:

Outer diameter: 6"<152mm>

Length: 20"<508mm>, 40"<1016mm>, 60"<1524mm>

Performance parameters

Filter accuracy: 1, 3, 4.5, 10, 20, 40μm

Working temperature: 140οF <60℃>

It is recommended to replace the pressure difference: 30psid<2.1bar>

Application

Food and beverage industry

Seawater desalination treatment

Cooling water system

Industrial water

Reverse osmosis prefiltration

Process water and wastewater treatment

Filtration accuracy/liquid flow rate and initial pressure difference

Recommended to optimize the system performance with a single filter element with large flow:

Our honors

Package & Shipment

Package: Plastic bag inside,Paper box outside.Usually we pack filter element by paper boxes.and use export standard wooden boxes or pallets for heavy goods.

Shipment: Express For Small Package,and also could offer Express lines service for Southeast Asian countries, Central Asian countries,Middle East countries; Air Shipment could ship goods above 45 kgs with faster time; Sea Shipment could ship goods with big volume or heavy total weight,with longer time; China-Europe freight train could ship goods to the countries and regions along the route, the destination is in Europe.and could offer door to door service!
