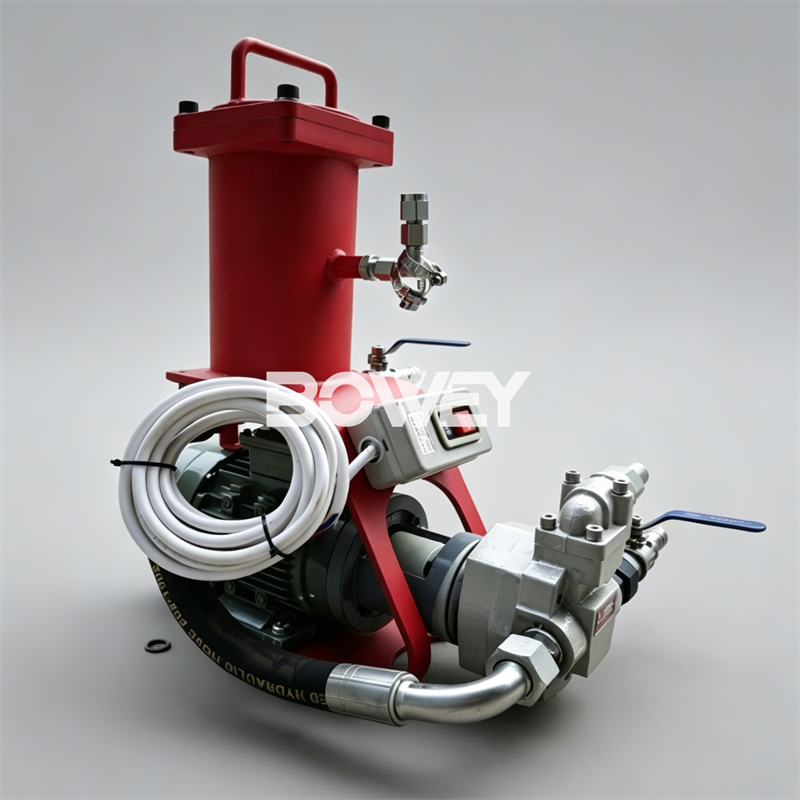

Bowey Portable Oil Filter BLYJ-10

Item No.: BLYJ - 10
Sale: 0
Quantity
-
+
(0 In Stock)
Description FAQ Review
Description

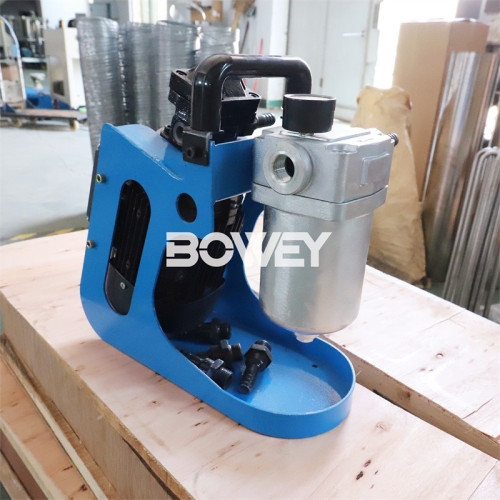

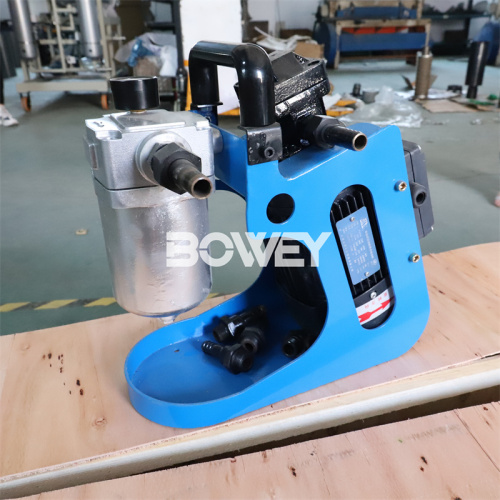

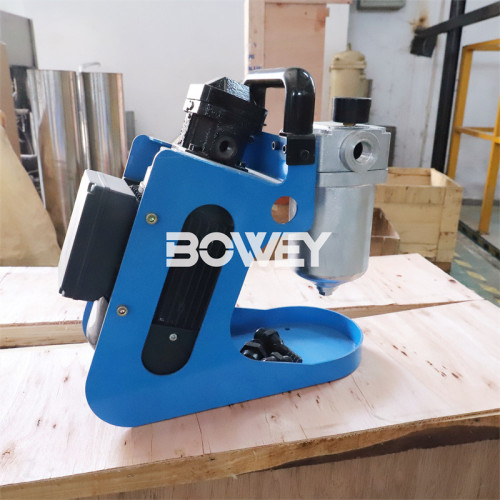

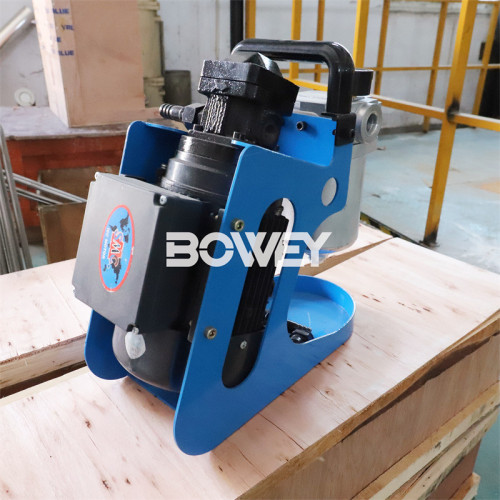

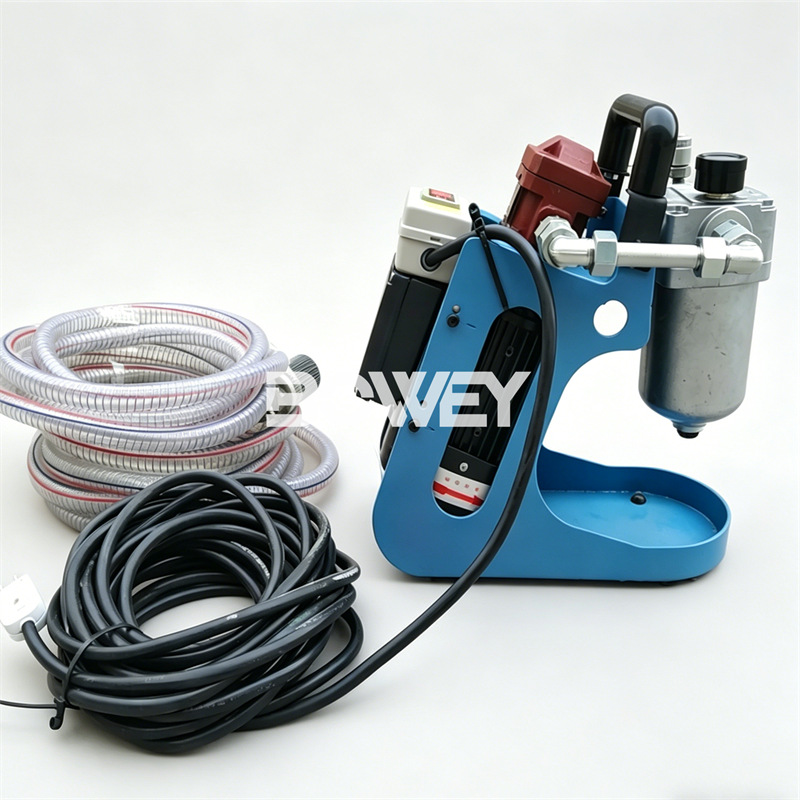

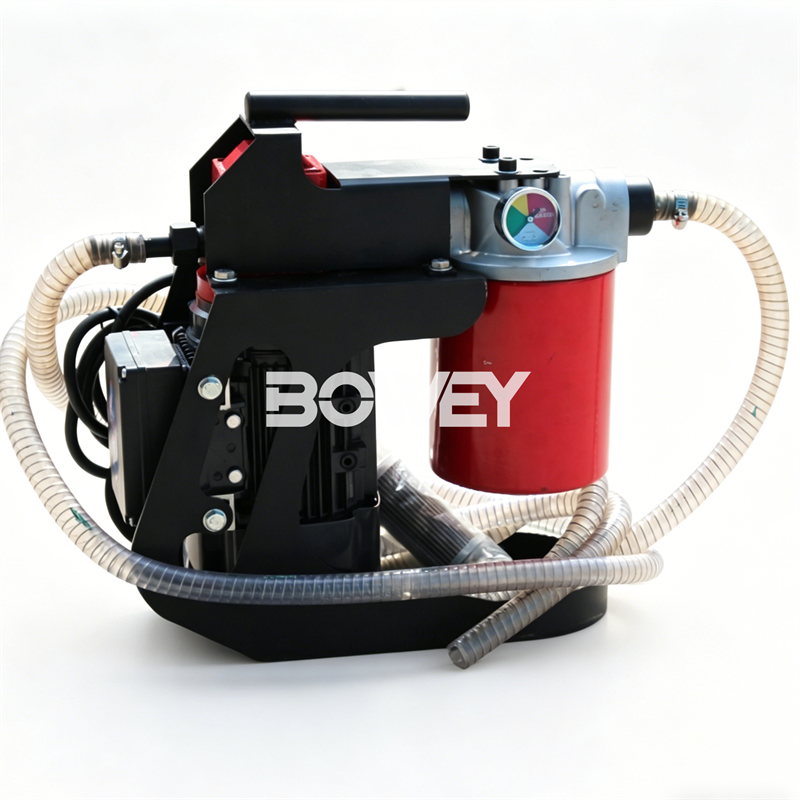

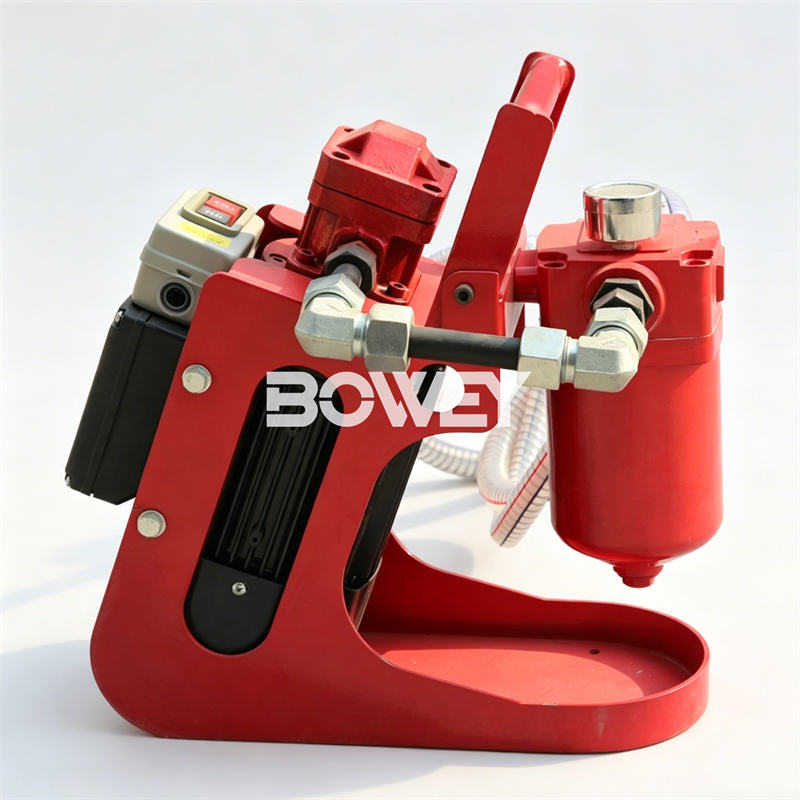

Bowey Portable Oil Filter BLYJ-10



Applications

●Hydraulic lubrication system refueling and regular maintenance

●Bypass filtration when hydraulic lubrication system works



Product Description

The oil purifier includes a special gear pump driven by a motor, with low noise, strong self-priming ability, stable operation, and an overflow protection device in the high-pressure pipeline. It can effectively protect the safety of the hydraulic system. Thermal relay protection is adopted to prevent motor damage caused by motor overload, and a coarse filter at the oil suction port protects the oil pump and prolongs the life of the main filter. The fine filter can choose different precision according to the different needs of users to meet the required requirements. The oil filter housing adopts a quick-opening structure, which can quickly open the upper cover and replace the filter element without any tools. The panel is equipped with pressure The meter, during operation, continuously indicates the operating condition of the system and the degree of contamination of the filter element.



Technical Parameter

Medium: general hydraulic oil, water, glycol, phosphate ester hydraulic oil

Medium viscosity: ≤160cst

Rated flow: 0.6Mpa Filtration precision: 3-10 microns

Voltage: AC380V three-phase AC220V two-phase

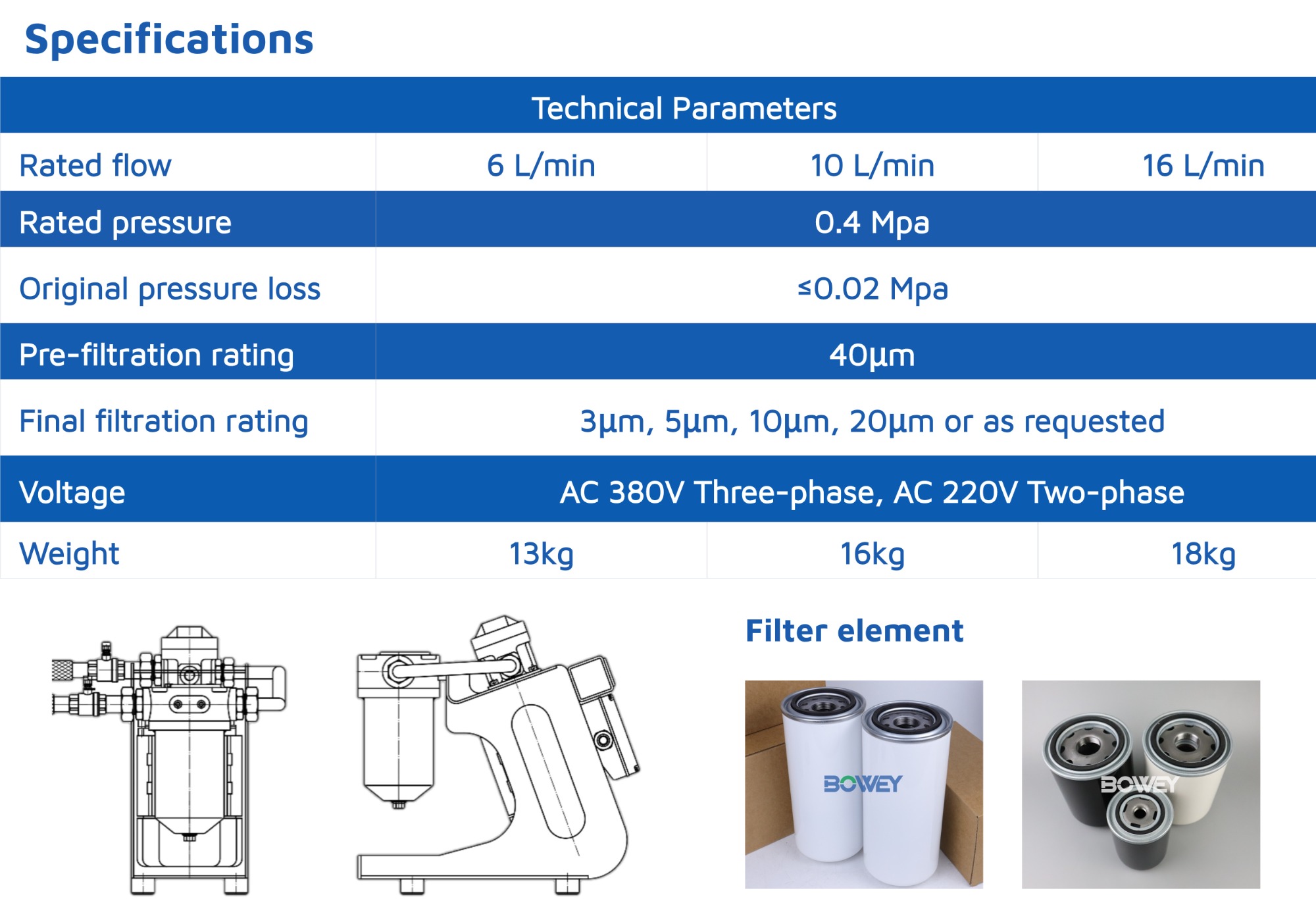

Specifications Table

Model

BLYJ-6-*/**

BLYJ-10-*/**

BLYJ-16-*/**

Rated Flow (L/min)

6

10

16

Rated pressure (Mpa)

0.4

Original pressure loss (Mpa)

≤0.02

Pre-pump filtration accuracy (µm)

40

Filtration accuracy after pump (µm)

40

Motor power (Kw)

0.18

0.25

0.35

Voltage (V)

AC 380V three-phase   AC 220V two-phase

Weight (Kg)

13

16

18

Dimensions

380*200*510

400*200*510

420*200*510

 Note: * is the precision of the fine filter, such as 003 is 3 microns

** is the applicable medium, omitted: general hydraulic oil;

FAQ
Q
What 's the Bowey Filter Serive?
A
Awesome & timely pre-sale service
Stable & reliable product quality
No delay production period and delivery time
Efficient & Economic transport plan
Guaranteed after-sale quality assurance system
12 months quality warranty after shipment
OEM and Customized design and production

Q
What's your Quality Standard?
A
ISO 2941------Collapse & Burst Resistant
ISO 2942------Fabrication & Integrity Test
ISO 2943------Material Compatibility with Fluids
ISO 3724------Flow Fatigue Characteristics
ISO 3968------Pressure Drop vs. Flow Rate
ISO 16889------Multi-pass Performance Testing


Q
Invoice Certification & Certificate Of Origin requirements
A

We could assist you to prepare Invoice certification or CO:

General certificate of origin (CERTIFICATE OF ORIGIN) issued by the commodity inspection agency.

CCPIT CEERTIFICATE OF ORIGIN issued by the Chamber of Commerce;

Certificate of Origin issued by us manufacturer or exporter.

Q
What's the payment method?
A
Bowey Filter support payment online by Paypal,also support T/T,Western Union,Money Gram,L/C,D/A,D/P and etc.
Q
What's the Package type?
A

Filter Element Unit Package Type: Plastic Bags Inside,Paper Boxes Outside.
Outside Package: Usually Paper Boxes,Or Export Wooden Boxes For Special Cargo.
About Customization: Accept Requirements Customization.

More
Q
What's the production time?
A

7-10 days after getting the payment

If quantity of order is big,will need more time.

Q
What's the MOQ?
A

Usually MOQ is 1pc only.

Some special model or OEM model MOQ is 5pcs or 20pcs.

Q
How's the Shipment Arragements?
A

DHL,UPS,FedEx,TNT and so on express door to door;by sea or by air shipment.

Some countries have special line double clearing to door service,such as some middle Eastern countries, Russia, Ukraine, Uzbekistan, Australia ,and Some Southeast Asian countries have tax package double clearing to door service.

Q
What's the filter material Bowey Filter using?
A

National fiber glass from CSG Design Institute; USA HV fiber glass.

National oil paper; imported South oil paper

Supurb stainless steel mesh; Special mesh

Imported air paper ;Polyester fiber;Polypropylene and etc.

Q
What's the OEM including?
A

Part no. OEM.

Brands OEM.

Package & labels OEM.

Size & Structure OEM.

Q
What's your Bowey Filter Products performance?
A
 Bowey Filter insisting on using good quality material and Mature production process,100% ensure installation and using.could replace to originals 99.99%.
