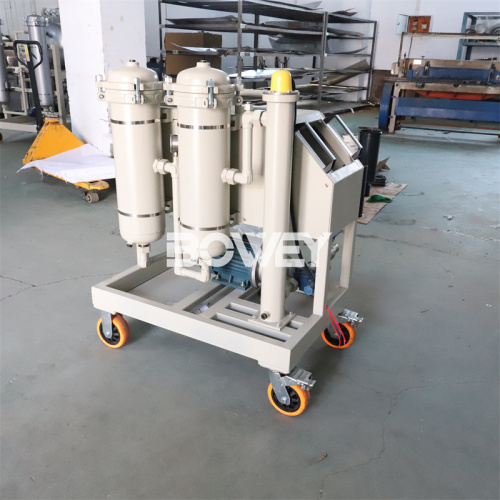

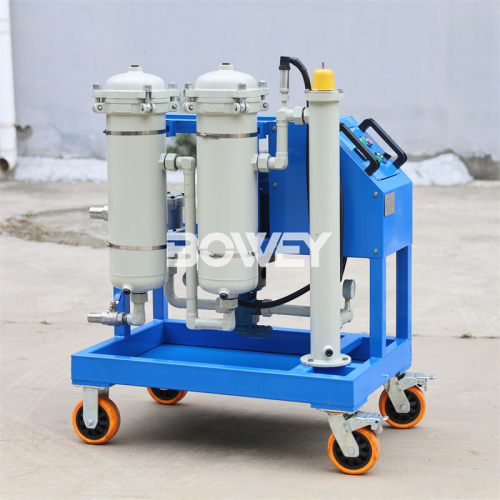

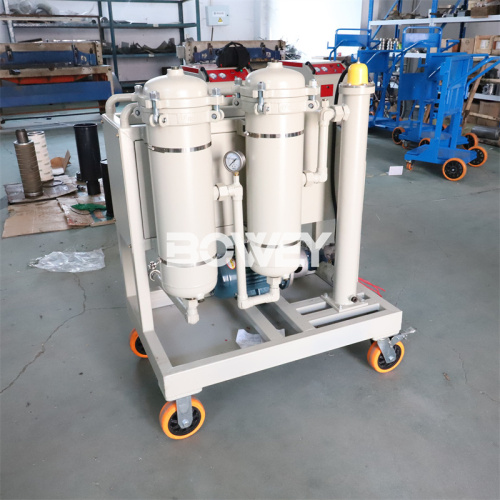

Bowey High-Viscosity Filter Carts GLYC-40
Applications
● Filtration of high viscosity lubricating oil
● Adding high viscosity lubricating oil
● Bypass filtration when working with high viscosity lubricating oil system
Product performance
1. The oil purifier adopts a special pump for high viscosity oil, which conveys the fluid smoothly, without pulsation, low noise and vibration.
Small, with strong self-priming ability.
2. It can filter a variety of corrosive media, especially suitable for filling and filtration of high viscosity oil.
3. Optional heating function, when the temperature is too low or the viscosity of the oil is too large, the heater can be started to feed the oil.
Line heating, the highest temperature can reach 120*C.
4. The pipeline is equipped with an overflow protection device, which can effectively protect the safety of the hydraulic system.
5. Adopt thermal relay protection to prevent motor damage caused by motor overload.
6. The oil suction port coarse filter protects the oil pump and prolongs the service life of the main filter.
7. The fine filter can choose different precision according to the different needs of users to provide the system with better
Protect.
8. The oil filter housing adopts a quick-opening structure, which can quickly and quickly open the upper cover and replace the filter element without any tools.
9. The panel is equipped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the filter element during operation.
Technical Data
Model |
GLYC-25-*/** |
GLYC-40-*/** |
GLYC-50-*/** |
GLYC-63-*/** |
GLYC-100-*/** |
GLYC-160-*/** |
Rated flow L/min |
25 |
40 |
50 |
63 |
100 |
160 |
Operating Tem.℃ |
5-100 |
|||||
Recommended viscosity CSt |
100-760 |
|||||
Rated pressure Mpa |
1.0 |
|||||
Initial pressure loss Mpa |
≤0.02 |
|||||
First-class Accuracy μm |
100 |
|||||
Second-class Accuracy μm |
10,20,30 |
|||||
Third-class Accuracy μm |
3,5,10, 20, 40 |
|||||
Voltage V |
AC380V (three phase) 50Hz |
|||||
Motor Power Kw |
1.1 |
1.2 |
3.0 |
3.0 |
4.0 |
5.5 |
Weight Kg |
160 |
240 |
400 |
265 |
400 |
FAQ
Q
What 's the Bowey Filter Serive?
A
Awesome & timely pre-sale service
Stable & reliable product quality No delay production period and delivery time Efficient & Economic transport plan Guaranteed after-sale quality assurance system 12 months quality warranty after shipment OEM and Customized design and production Q
What's your Quality Standard?
A
ISO 2941------Collapse & Burst Resistant
ISO 2942------Fabrication & Integrity Test ISO 2943------Material Compatibility with Fluids ISO 3724------Flow Fatigue Characteristics ISO 3968------Pressure Drop vs. Flow Rate ISO 16889------Multi-pass Performance Testing Q
Invoice Certification & Certificate Of Origin requirements
A
We could assist you to prepare Invoice certification or CO: General certificate of origin (CERTIFICATE OF ORIGIN) issued by the commodity inspection agency. CCPIT CEERTIFICATE OF ORIGIN issued by the Chamber of Commerce; Certificate of Origin issued by us manufacturer or exporter. Q
What's the payment method?
A
Bowey Filter support payment online by Paypal,also support T/T,Western Union,Money Gram,L/C,D/A,D/P and etc.
