BLYJ-10 Bowey portable oil filter

Item No.: BLYJ-10
Sale: 0
Quantity
-
+
(0 In Stock)
Description FAQ Review
Description

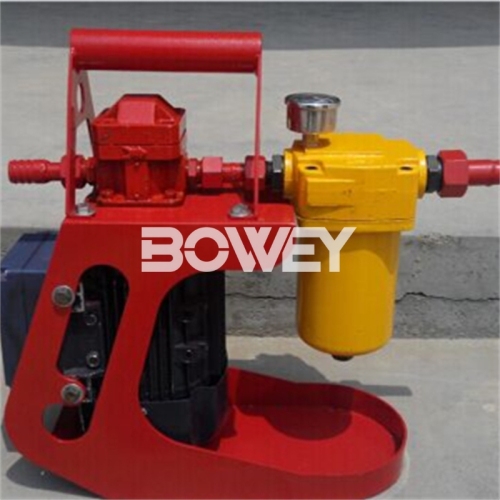

BLYJ-10 Bowey portable oil filter



Product introduction

The oil filter includes a special gear pump driven by a motor, which has low noise, strong self-priming capability, stable operation, and an overflow protection device for the high-pressure pipeline. It can effectively protect the safety of the hydraulic system. Thermal relay protection is used to prevent motor damage caused by motor overload. The suction port coarse filter protects the oil pump and extends the life of the main filter. The fine filter can select different precision according to the different needs of users, and meet the required requirements. The oil filter housing adopts a quick opening structure, can open the upper cover quickly without any tools, replace the filter element, and the pressure on the panel Table, at work, continuously indicates the operating condition of the system and the degree of contamination of the filter element.



Technical Parameters

Medium: general hydraulic oil water ethylene glycol phosphate ester hydraulic oil

Medium viscosity: ≤160cst

Rated flow rate: 0.6Mpa Filtration accuracy: 3-10 microns

Voltage: AC380V three-phase AC220V two-phase



Specification table

Model

BLYJ-6-*/**

BLYJ-10-*/**

BLYJ-16-*/**

Rated Flow L/min

6

10

16

Rated Pressure Mpa

0.4

Original pressure loss Mpa

≤0.02

Pre-filtering Accuracy µm

40

After-filtering Accuracyµm

40

Motor Power Kw

0.18

0.25

0.35

Voltage V

AC 380V Three-phase   AC 220V Two-phase

Weight Kg

13

16

18

Dimensions MM

380*200*510

400*200*510

420*200*510



FAQ
Q
What 's the Bowey Filter Serive?
A
Awesome & timely pre-sale service
Stable & reliable product quality
No delay production period and delivery time
Efficient & Economic transport plan
Guaranteed after-sale quality assurance system
12 months quality warranty after shipment
OEM and Customized design and production

Q
What's your Quality Standard?
A
ISO 2941------Collapse & Burst Resistant
ISO 2942------Fabrication & Integrity Test
ISO 2943------Material Compatibility with Fluids
ISO 3724------Flow Fatigue Characteristics
ISO 3968------Pressure Drop vs. Flow Rate
ISO 16889------Multi-pass Performance Testing


Q
Invoice Certification & Certificate Of Origin requirements
A

We could assist you to prepare Invoice certification or CO:

General certificate of origin (CERTIFICATE OF ORIGIN) issued by the commodity inspection agency.

CCPIT CEERTIFICATE OF ORIGIN issued by the Chamber of Commerce;

Certificate of Origin issued by us manufacturer or exporter.

Q
What's the payment method?
A
Bowey Filter support payment online by Paypal,also support T/T,Western Union,Money Gram,L/C,D/A,D/P and etc.
Q
What's the Package type?
A

Filter Element Unit Package Type: Plastic Bags Inside,Paper Boxes Outside.
Outside Package: Usually Paper Boxes,Or Export Wooden Boxes For Special Cargo.
About Customization: Accept Requirements Customization.

More
Q
What's the production time?
A

7-10 days after getting the payment

If quantity of order is big,will need more time.

Q
What's the MOQ?
A

Usually MOQ is 1pc only.

Some special model or OEM model MOQ is 5pcs or 20pcs.

Q
How's the Shipment Arragements?
A

DHL,UPS,FedEx,TNT and so on express door to door;by sea or by air shipment.

Some countries have special line double clearing to door service,such as some middle Eastern countries, Russia, Ukraine, Uzbekistan, Australia ,and Some Southeast Asian countries have tax package double clearing to door service.

Q
What's the filter material Bowey Filter using?
A

National fiber glass from CSG Design Institute; USA HV fiber glass.

National oil paper; imported South oil paper

Supurb stainless steel mesh; Special mesh

Imported air paper ;Polyester fiber;Polypropylene and etc.

Q
What's the OEM including?
A

Part no. OEM.

Brands OEM.

Package & labels OEM.

Size & Structure OEM.

Q
What's your Bowey Filter Products performance?
A
 Bowey Filter insisting on using good quality material and Mature production process,100% ensure installation and using.could replace to originals 99.99%.
Less
