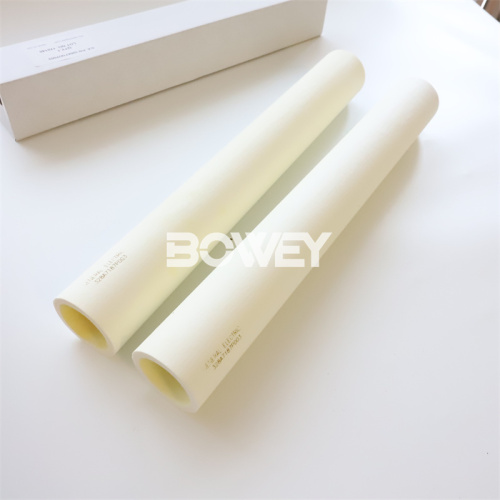

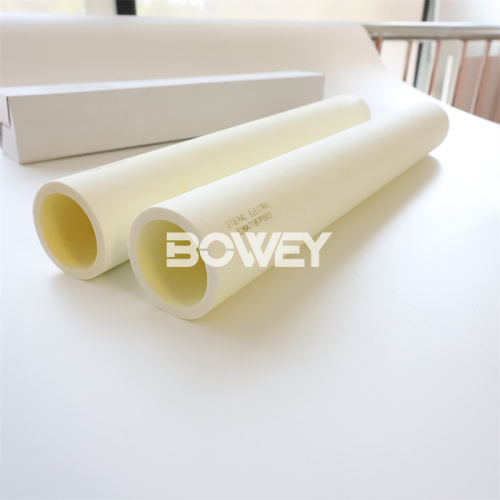

25-178-70C 25-178-50C 25-127-50C 25-127-70C Bowey dry gas seal oil mist separation filter element
The coalescence filter element is processed by a variety of composite materials through a special process. It has hydrophilic characteristics. It can not only filter out the mechanical impurities in the medium, but also remove the emulsified water from the medium through demulsification and coalescence. The filter element is separated and coalesced into larger water droplets to facilitate further purification of the medium.
Principle of filtration
The droplets of oil, water and other liquids are captured by the ultrafine fibers inside the coalescer. These micron-sized fibers form a tortuous channel for the airflow, forcing solid particles and liquid droplets to collide, diffuse and intercept directly, and intercept directly. Under the action of this filtering mechanism, it is captured by the ultrafine fibers, and the surface tension of the liquid causes the small droplets to coalesce into larger droplets. Due to gravity, the large droplets settle to the bottom of the container.
The glass fiber coalescing filter element is made of high-density gradient glass fiber. In order to reduce damage and loss, it is designed as an integral monolithic tube structure. The surface of the filter element is treated with hydrophobic and oleophobic treatment, which can meet the requirements of various precision levels.
Polyester fiber coalescence filter element The filter element is usually made of polyester fiber synthetic material, which has good compatibility with various fluids. The filter element is spirally rolled with a multi-layer structure, and each layer uses fibers with different properties. The expected filtration accuracy can be achieved by controlling the shape, size, thickness and density of each layer of fibers.
The coalescing filter element mainly uses surface-treated glass fiber or polyester fiber as the coalescing medium. The structure of the filter material is specially designed to make the filter medium have good coalescence performance. The filtration accuracy can reach 0.1μm.
The glass fiber coalescing filter element is a high-density gradient glass fiber, which efficiently coalesces liquid mist and droplets in the airflow, and has high filtration accuracy. The structure is stable, there is no media fiber shedding, and it will not cause pollution to the environment and downstream products. It has good compatibility with various fluids; good environmental protection, 100% synthetic material, completely burned without residue.
The outer diameter is 3.5 inches, 4.5 inches, 6 inches;
Length 16, 18, 20, 32, 36, 40, 72 inches
Filter frame material-stainless steel and carbon steel
The accuracy range is less than 0.3 micron, 0.3 micron, 0.5 micron, 1 micron, 5 micron, 10 micron
Initial pressure difference ≤0.15psig
Replacement pressure difference <0.6psig
Operating temperature 0~150℃
1. Aviation fuel, gasoline, kerosene, diesel;
2. Liquefied petroleum gas, stone tar, benzene, toluene, xylene, cumene, polypropylene, etc.;
3. Turbine oil and other low viscosity hydraulic oil and lubricating oil;
4. Cycloethane, isopropanol, cycloethanol, cycloethyl ketone, etc.;
5. Other hydrocarbon compounds
Package & Shipment
Package: Plastic bag inside,Paper box outside.Usually we pack filter element by paper boxes.and use export standard wooden boxes or pallets for heavy goods.
Shipment: Express For Small Package,and also could offer Express lines service for Southeast Asian countries, Central Asian countries,Middle East countries; Air Shipment could ship goods above 45 kgs with faster time; Sea Shipment could ship goods with big volume or heavy total weight,with longer time; China-Europe freight train could ship goods to the countries and regions along the route, the destination is in Europe.and could offer door to door service!
We could assist you to prepare Invoice certification or CO:
General certificate of origin (CERTIFICATE OF ORIGIN) issued by the commodity inspection agency.
CCPIT CEERTIFICATE OF ORIGIN issued by the Chamber of Commerce;
Certificate of Origin issued by us manufacturer or exporter.
Filter Element Unit Package Type: Plastic Bags Inside,Paper Boxes Outside.
Outside Package: Usually Paper Boxes,Or Export Wooden Boxes For Special Cargo.
About Customization: Accept Requirements Customization.
7-10 days after getting the payment
If quantity of order is big,will need more time.
Usually MOQ is 1pc only.
Some special model or OEM model MOQ is 5pcs or 20pcs.
DHL,UPS,FedEx,TNT and so on express door to door;by sea or by air shipment.
Some countries have special line double clearing to door service,such as some middle Eastern countries, Russia, Ukraine, Uzbekistan, Australia ,and Some Southeast Asian countries have tax package double clearing to door service.
National fiber glass from CSG Design Institute; USA HV fiber glass.
National oil paper; imported South oil paper
Supurb stainless steel mesh; Special mesh
Imported air paper ;Polyester fiber;Polypropylene and etc.
Part no. OEM.
Package & labels OEM.
Size & Structure OEM.
