Servo valve filter element Mini valve body filter element

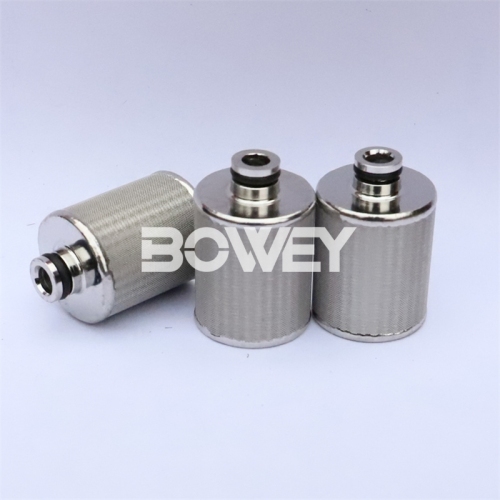

Bowey servo valve filter element
Micro valve body filter element
The micro-valve filter element generally refers to a filter element which is welded by vacuum electron beam, and can also be a filter element having a diameter of less than 20 mm, a min diameter of 5 mm and a length of less than 100 mm. It is commonly used in hydraulic and pneumatic control systems for various precision servo valve hydraulic oil or gas filtration, with high precision, good strength and rigidity, low resistance, large flow, high cleanliness, easy to use, stable filter holes, long service life It can replace the bronze powder sintered filter (first generation valve filter) and the skeleton-coated metal mesh filter and the imported wire wound filter to make the servo system more stable and reliable. It has been widely used in aerospace, hydraulic machinery, precision machine tools. , automatic control and other fields.
1, the welding penetration is large, the error is small, and the weld strength is high;
2, the weld is narrow, generally only 1-1.5mm, very suitable for the manufacture of small-size filter cartridges (solving the original impossible problem);
3, the deformation is small, the pass rate is high, and the quality is stable;
4, since the welding is not oxidized, the weld bead is fine and the components are beautiful;
5, can be used to replace imports and for military products.
Vacuum electron beam welding sintered mesh filter element
This kind of filter element uses stainless steel sintered mesh as the filter material, which is rolled and welded by vacuum electron beam. The width of the weld is only 1~1.5mm, and the width to depth ratio of the weld is the best among all welding processes, and the welding process does not oxidize.
1. Stable mesh, accurate filtering accuracy, up to 1um;
2. High dimensional accuracy, can be welded with the end into various sizes and shapes, beautiful appearance;
3. Large flow rate, renewable cleaning and repeated use, long life;
4. High strength, can withstand high pressure.
Various servo valves:
hydraulic control servo valves, electro-hydraulic servo valves, proportional servo valves, MOOG servo valves, two-stage electro-hydraulic servo valves, three-stage electro-hydraulic servo valves, single-nozzle flapper servo valves, double-nozzle flapper Type servo valve, spool type servo valve, jet tube type servo valve, deflection plate jet type servo valve, position feedback type servo valve, load pressure feedback type servo valve, load flow feedback type servo valve, electric feedback type servo valve, dynamic Iron servo valve, moving coil servo valve, flow servo valve and pressure control servo valve, etc.
We could assist you to prepare Invoice certification or CO:
General certificate of origin (CERTIFICATE OF ORIGIN) issued by the commodity inspection agency.
CCPIT CEERTIFICATE OF ORIGIN issued by the Chamber of Commerce;
Certificate of Origin issued by us manufacturer or exporter.
Filter Element Unit Package Type: Plastic Bags Inside,Paper Boxes Outside.
Outside Package: Usually Paper Boxes,Or Export Wooden Boxes For Special Cargo.
About Customization: Accept Requirements Customization.
7-10 days after getting the payment
If quantity of order is big,will need more time.
Usually MOQ is 1pc only.
Some special model or OEM model MOQ is 5pcs or 20pcs.
DHL,UPS,FedEx,TNT and so on express door to door;by sea or by air shipment.
Some countries have special line double clearing to door service,such as some middle Eastern countries, Russia, Ukraine, Uzbekistan, Australia ,and Some Southeast Asian countries have tax package double clearing to door service.
National fiber glass from CSG Design Institute; USA HV fiber glass.
National oil paper; imported South oil paper
Supurb stainless steel mesh; Special mesh
Imported air paper ;Polyester fiber;Polypropylene and etc.
Part no. OEM.
Package & labels OEM.
Size & Structure OEM.
