LB-1-24-FH300 Bowey Metal High Flow Filter Elements

Author : Boweyfilter

Update time : 2025-03-28 10:59:01

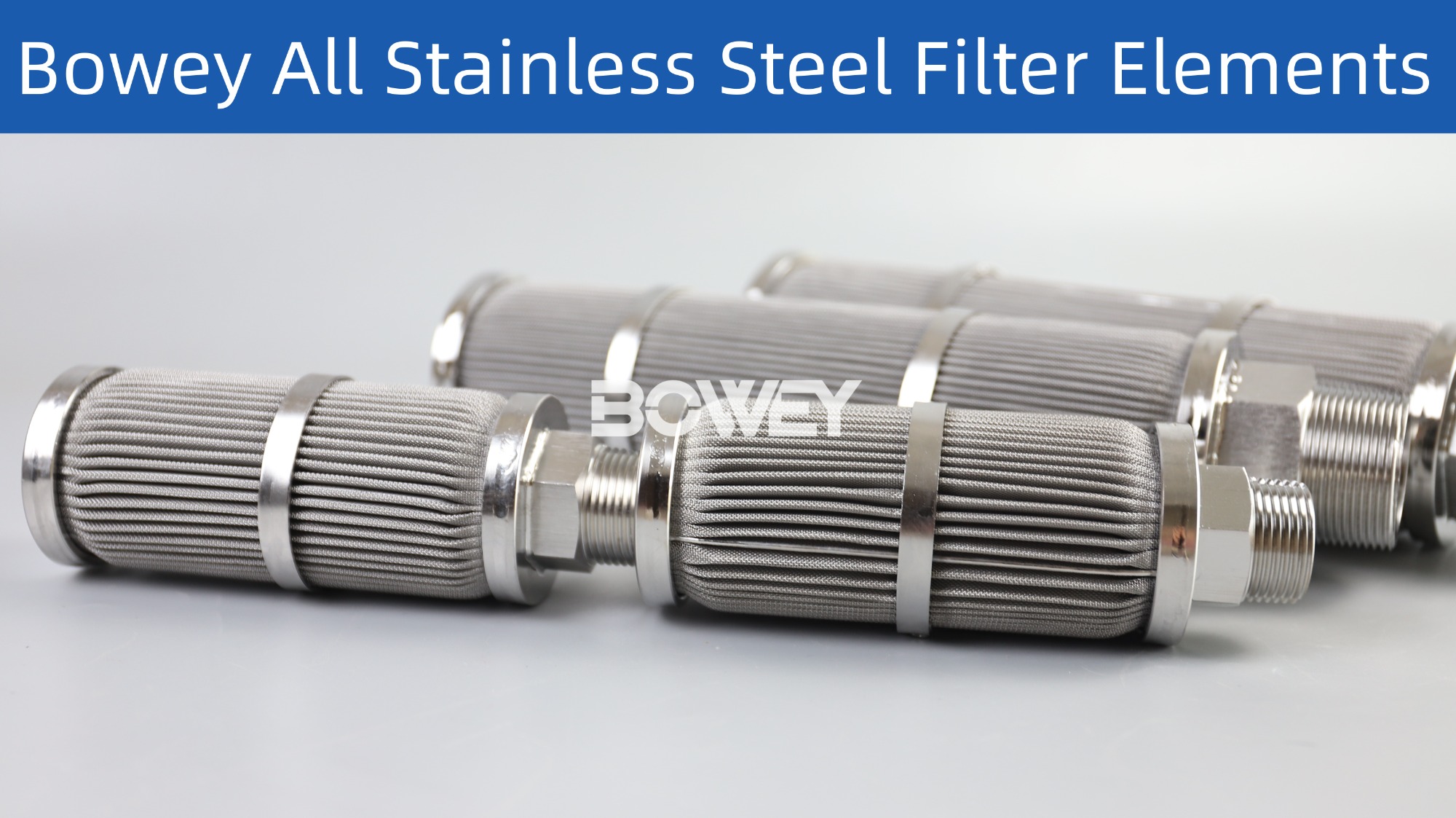

Bowey All Metal High Flow Filter Elements Provide More Filter Area and Longer Filter Life!

Bowey's line of washable metal high-flow filters has been expanded to include high-area, large-diameter versions. These filter elements are specifically designed to provide very high surface area, up to 4.1 square meters, to handle large flow rates, produce very low clean differential pressures, and absolutely remove particles from 2.5 microns to 105 microns in liquids, and 0.25 to 85 microns in gases.

Dimensions
Length	380 mm (15’’)
	762 mm (15’’)
Outer diameter	190 mm (7.45’’)
Inner diameter	100 mm (6.3’’)

Features	Benefits
Large diameter, large surface area	Low cleaning differential pressure
	High dust holding capacity
	Longer filter life
	Replaces up to 30 traditional metal filter elements
Higher flow per filter element	Smaller system
	Faster changeout
Absolute removal rates from 2.5 to 225 µm	Provides consistent and repeatable filtration throughout filter life
	Single housing provides multiple removal solutions
Cleanable	Easier to clean than traditional metal filter elements

Application
For use where high flow rates and high temperatures prevent the use of polymer products.
Gas compressor inlets to reduce the effects of fouling.
Catalyst protection to extend catalyst life.
Heat exchanger protection to reduce energy costs.
Pump protection to extend pump life

Why choose all-stainless steel hydraulic filter elements?

1. All-stainless steel material: corrosion-resistant, high temperature-resistant, impact-resistant, facing harsh environments such as acid, alkali, salt spray, high pressure, etc., with a service life of up to 5-10 years.

2. Multi-layer composite sintering technology: precision filtration, increased dirt holding capacity, interception of metal debris and colloidal particles, and protection of hydraulic system "zero pollution".

3. Intelligent design, worry-free and money-saving.

4. Reusable cleaning: support ultrasonic and reverse flushing, maintenance costs are reduced by 60%, and the waste and environmental pressure of disposable filter elements are eliminated.

5. Ultra-high pressure compatibility: pressure bearing capacity of 50MPa+, suitable for high-pressure scenes such as wind power, shield machines, aerospace, etc., and refuse the risk of core explosion.

Who needs it?

1. Heavy industry manufacturing: metallurgical and mining equipment hydraulic systems, filtering metal dust in high-temperature oil.

2. Energy field: wind power gearboxes, nuclear power hydraulic stations, anti-vibration, temperature difference resistance, to ensure ten years of long-term operation.

3. Shipbuilding and offshore engineering: seawater hydraulic power units, resist salt spray corrosion, escort deep-sea operations safely.

4. Precision machinery: injection molding machines, CNC machine tools, intercepting micron-sized particles and avoiding servo valve jams.

Extended model

LB-1-24-RM	LB-1-24-RR	LB-1-24-RS	LB-2-24-RM
LB-2-24-RR	LB-2-24-RS	LB-1-24-FH025	LB-1-24-FH050
LB-1-24-FH080	LB-1-24-FH100	LB-1-24-FH150	LB-1-24-FH200
LB-1-24-FH250	LB-1-24-FH300	LB-1-24-FH400	LB-2-24-FH025
LB-2-24-FH050	LB-2-24-FH080	LB-2-24-FH100	LB-2-24-FH150
LB-2-24-FH200	LB-2-24-FH250	LB-2-24-FH300	LB-2-24-FH400

If you are interested in Boweyfilter products, please contact us here.
